JOS-1FW

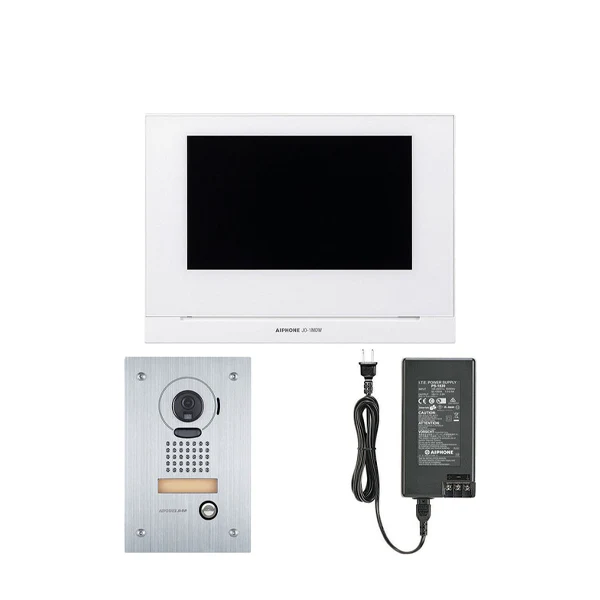

This boxed set contains all the equipment needed for an app-enabled entry security system. A call from the flush-mount video doorbell rings the on-site monitor and up to eight smartphones or tablets. After answering the call, you can see and speak with your visitor then easily unlock the door with the touchscreen monitor or using the slider button on the app. The unique hardwired monitor ensures calls can be answered even when the internet is down or slow and the mobile app ensures you stay connected when you're on the go. The monitor features built-in memory that can be manually activated to record video from the doorbell or set to automatically record all calls. Expand storage using the MicroSD card slot and view recorded calls on both the monitor and the app.

Specifications:

Video Display	7" TFT Touchscreen
Mounting	Surface wall mount or desk mount with MCW-S stand
Internal Call Recording	10 calls max. @ 10 seconds/call
Memory Expansion	micro SDHC card slot, 32GB max.
Call Recording with max memory	1,000 calls max. @ 10 seconds/call
Wireless Protocol	802.11b, 802.11g, and 802.11n (Wireless B/G/N)
Camera	1/4 inch color CMOS
Enclosure Rating	IP54
Impact Rating	IK07
Operational Tempature	-40°~140° F (-40° ~ 60° C)
Wiring to master	2-cond., low cap, solid, non-shielded
Max. Wire distance	165' (22AWG) 330' (18AWG)
Power Source	AC 100~240V 50/60Hz
Power Output	DC 18V 2A

Downloads:

Installation Manual
