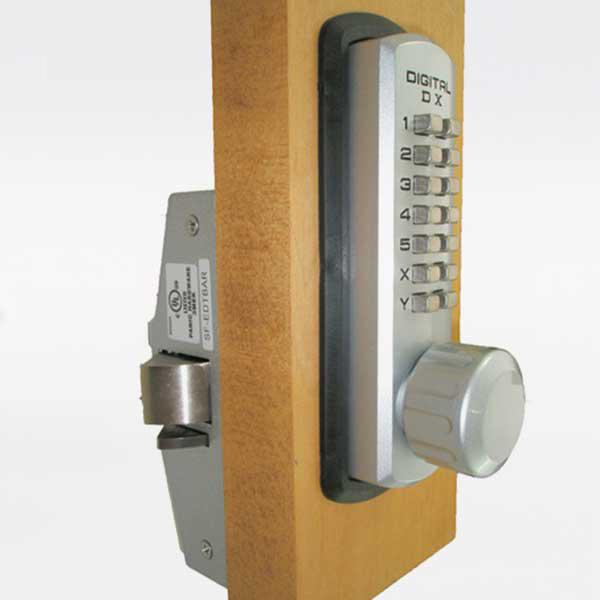

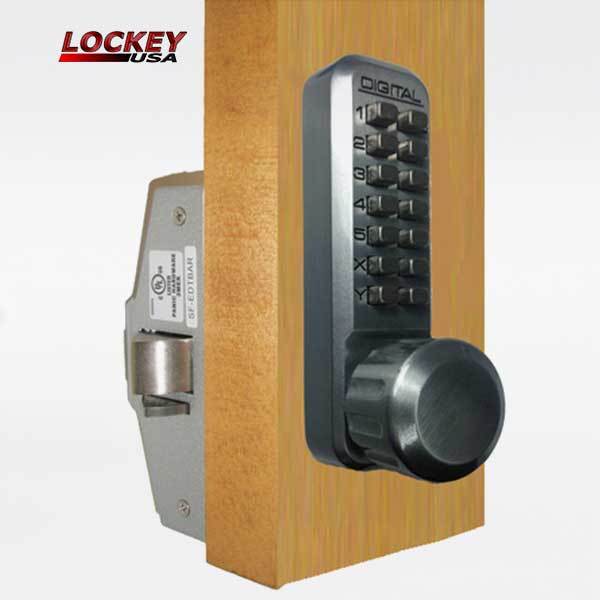

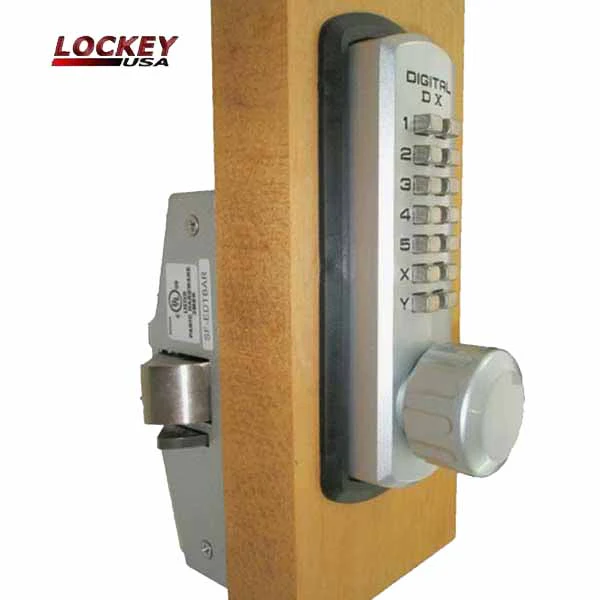

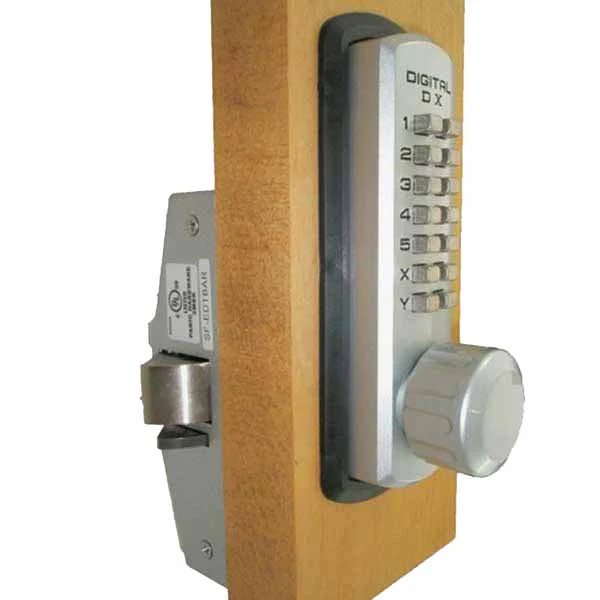

The 230-P Features:

- 2230 Lock Body - Features oversized knob (OSK) - Takes the place of the keyed cylinder and requires acceptance of a flat tailpiece - Changeable Handing - Easy Installation - Easy to change combination - Covers standard 2 1/8" hole

The 230-P Keyless Panic Trim will work on all devices that accept a flat tailpiece and have a turn radius of 90 degrees or less. DETEX compatible. The lock takes the place of the keyed cylinder and is most commonly used on Panic Exit Devices. Ideal for... - Panic Exit Doors/Gates - Narrow Stile Doors - Commercial Doors - Hospitals - Schools

Choose your configuration for your Double Deadbolt Lock:

•


DIMENSIONS	5 1/2" H x 1 5/8" W
FINISHES AVAILABLE	Antique Brass; Bright Brass; Satin Chrome; Satin Nickel; Jet Black; White; Bright Chrome; Oil Rubbed Bronze; Marine Grade
DOOR THICKNESS	1 1/8” to 2”
DEADBOLT	Adjustable deadbolt backset
TOTAL COVERAGE WITH TRIM PLATES	6 1/2″ x 2 1/2″
DOOR PREP	Covers standard 2 1/8″
MATERIAL	Zinc-plated Steel with Teflon coated stainless steel interior components
APPLICATION	Exterior & Interior Use Weather Resistant
WARRANTY	Lifetime Mechanical

Specifications Sheet
Instructions
