ABH-0147

Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.

Features:

• 019-1.5 Offset intermediate pivot required (order separately)
• Handed - Specify LH or RH
• Maximum door load 350 pounds
• Maxium door width - 48"
• UL listed for use on 3-hour fire rated doors - Standard
• Heavy duty bearings
• Stainless steel base material
• Average weight per unit = 5 lbs
• Doors ranging from 60" to 90” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height. (ie, 120" tall door should use two intermediate pivots)

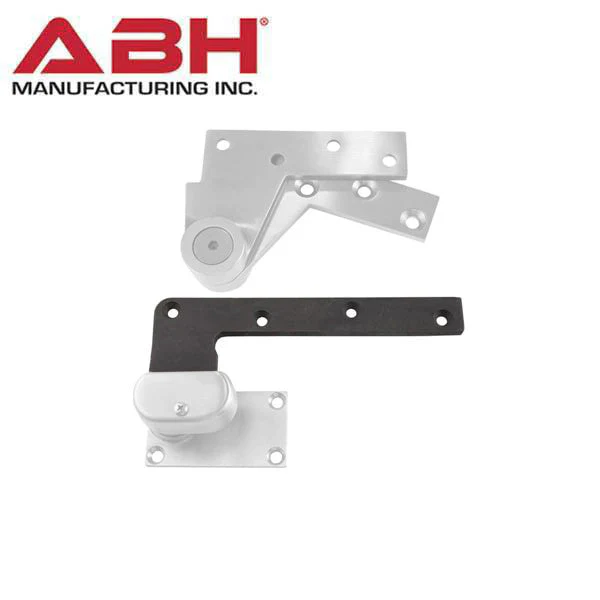

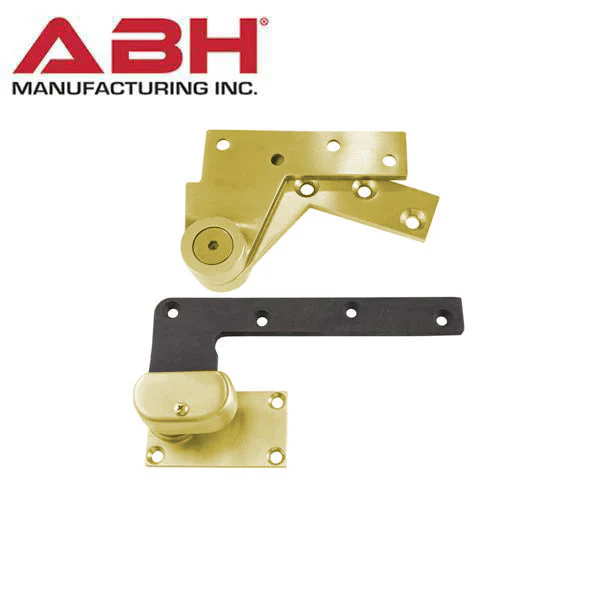

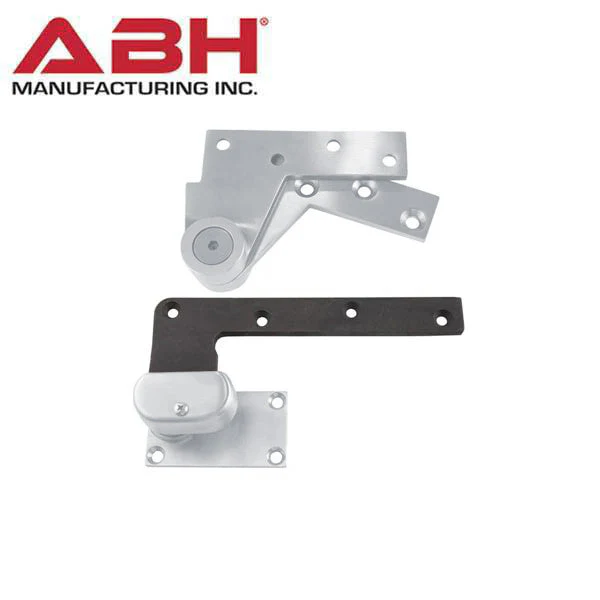

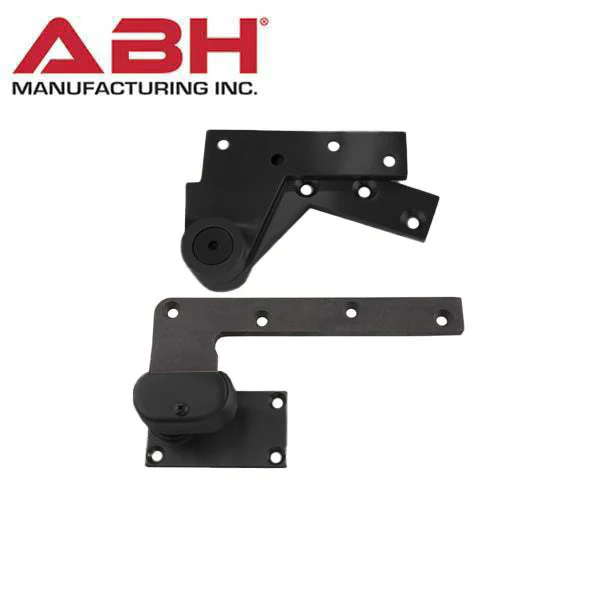

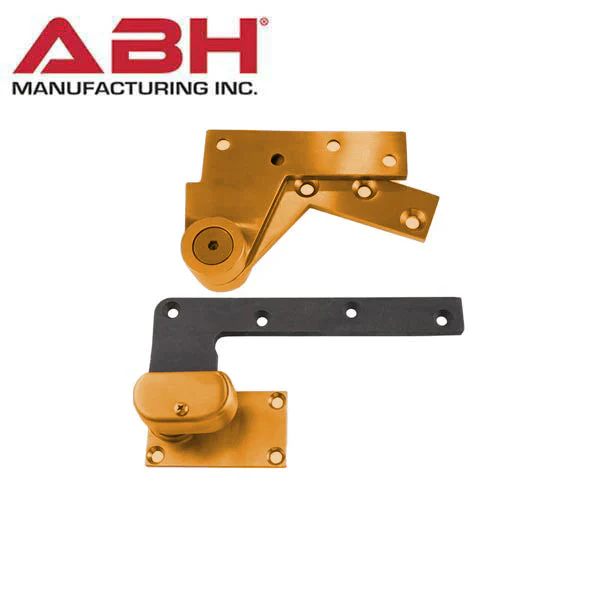

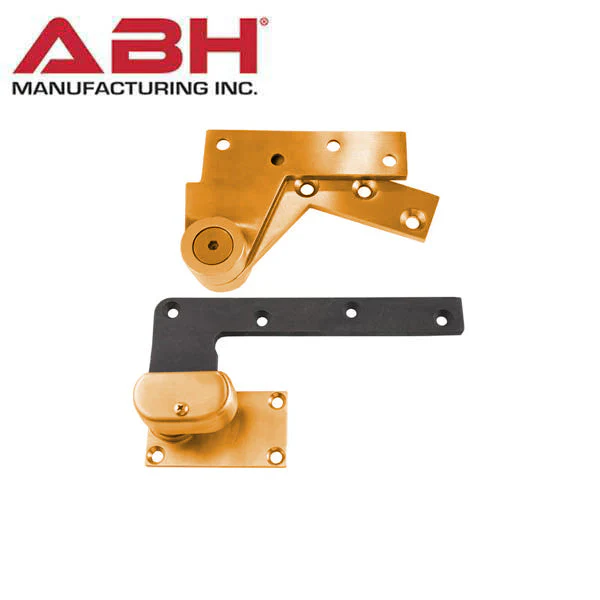

Includes:

• 0180 - 1.5 Top Pivot
  • Frame leaf mortises into header
  • Door leaf mortises into top of door
• 0147 - 1.5 Bottom Pivot
  • Bottom leaf mounts on top of concrete floor
  • Door leaf mortises into botton of door

Downloads:

• Spec Sheet
