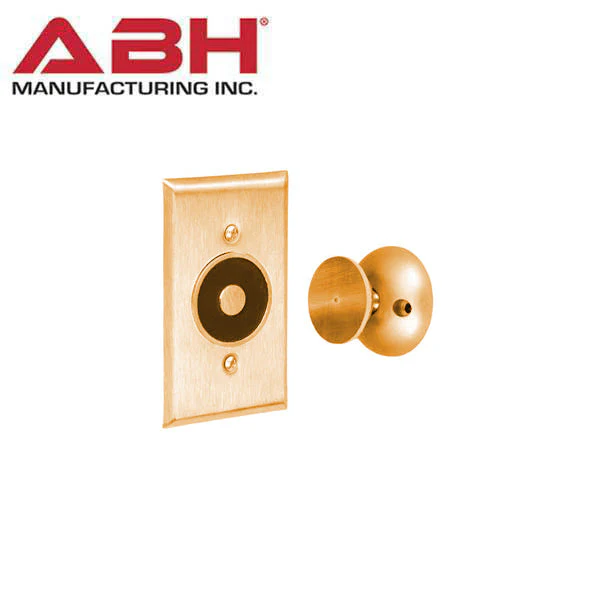

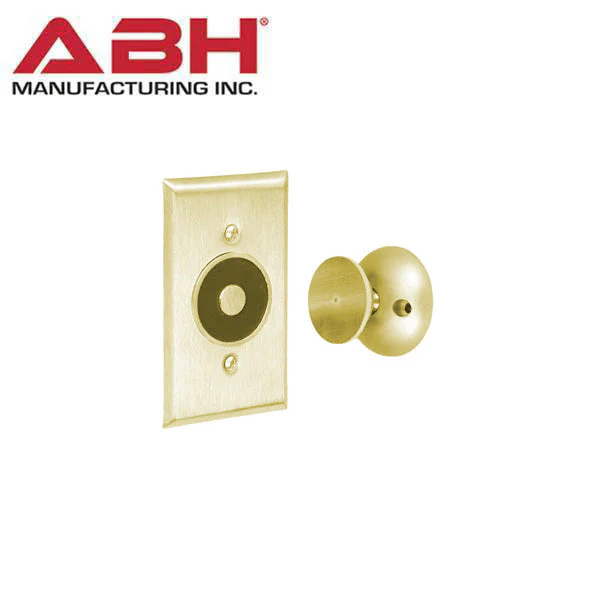

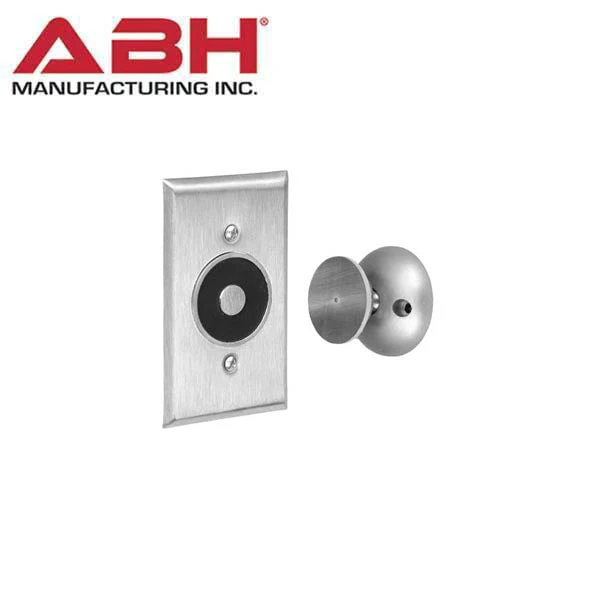

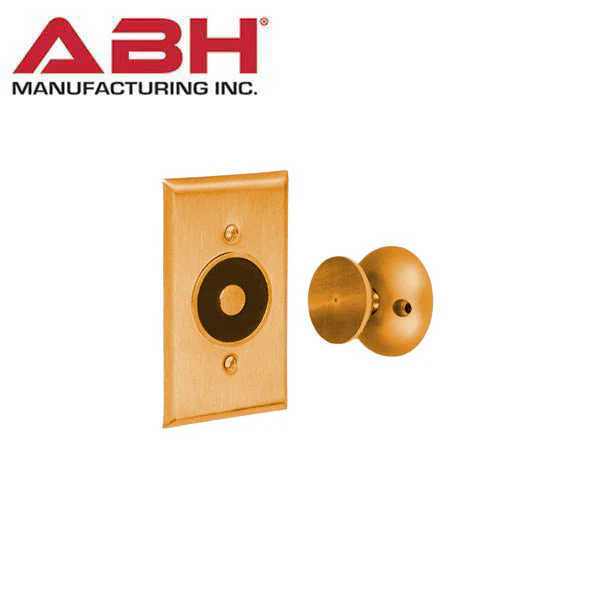

ABH-2400

Flush Wall Mount with Standard Armature

Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.

• 1-7/8" total projection from wall to face of door (2-7/8" if using complimentary 1" extension)
• Tri-voltage units for easy stocking and installation 12V DC, 24V AC/DC OR 120V AC
• Provided with one complimentary 1" extension - No charge
• Optional extension rods fill the gap between the magnet and door armature with no special adapter piece required
• 35 lb. holding force
• All metal components - No plastic parts
• UL/ULC listed for smoke barrior or labeled fire doors
• Listed by the California State Fire Marshall
• Outlet box required (not provided)
• Armature features two pivot points which each have 360° mobility to help door alignment and reduce installation time
• Positive release button alleviates residual magnetism
• Average with per unit = 2 lbs.
