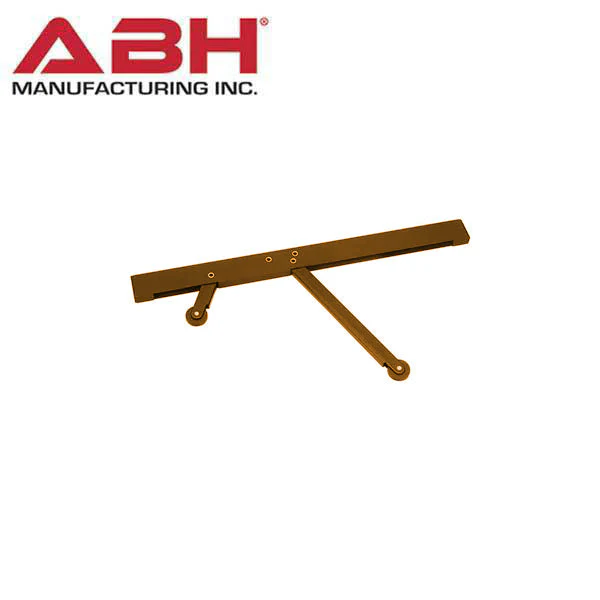

ABH-3780

Architectural Builders Hardware Mfg. Inc. (ABH) is a high-quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.

Features:

• For pair of doors up to 8' wide
• The long arm holds the active door open until the short arm is depressed by the inactive door
• Stop mounted - mounting brackets not required
• Standard finish = USP - Primed, black matte. Non-black matte finishes are a special order and may require an additional lead time
• Meets or exceeds ANSI 156.3, Type 21 requirements (when used with carry bar)
• Mounting brackets are not required when using stop-mounted hardware
• UL Listed for use with a pair of swinging fire doors incorporating an astragal for up to and including 3 hours
• Not for use with exposed vertical rod panic devices
• Average weight per unit = 3 lbs
• US Patent No. 6,250,014

Downloads:

• Spec Sheet
