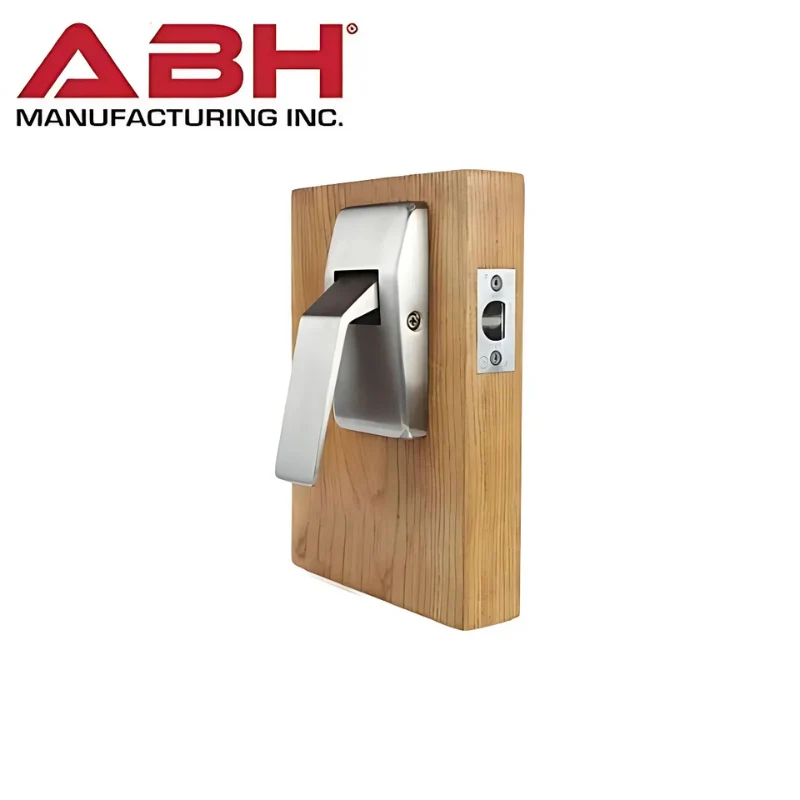

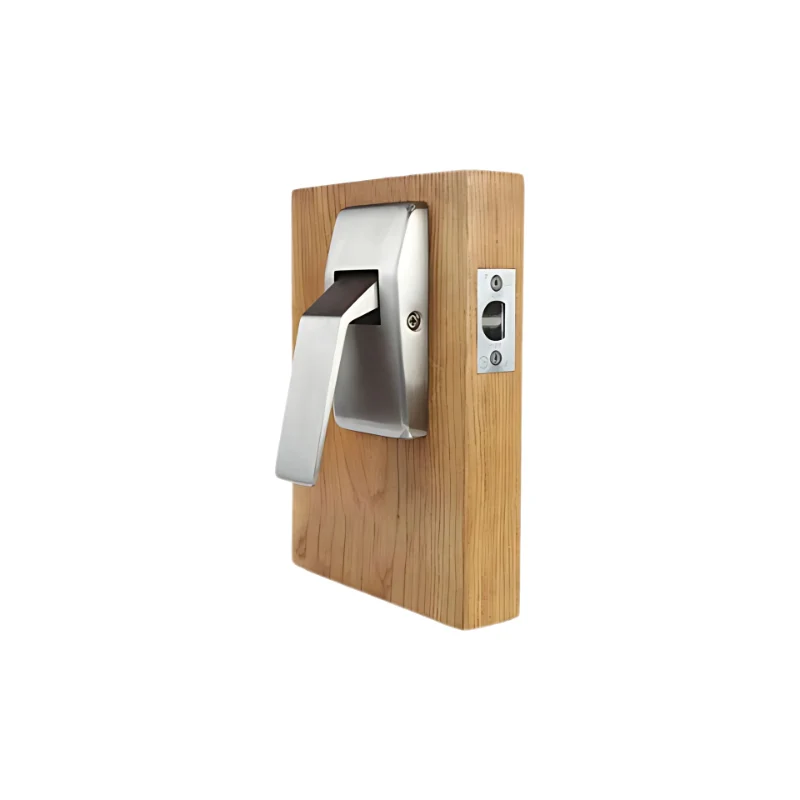

Reverse Latch

Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.

Features:

• Ideal for time-out rooms, behavioral settings and other similar institutions
• Latch bolt is always retracted until handle is activated
• When handle is activated, the latch bolt projects until the handle is released
• Push or pull handle trim assembly on one side and flat plate on other side of door
• Cylindrical reverse latch application - passage function
• 1-3/4" standard door thickness
• Meets ADA requirements
• Trim is mounted using four thru-bolts for maximum stability
• Handing of unit is field-reversible by easily reversing the cam holder assembly on the backside of the unit
• Linear acting cam which provides for a smoother operating unit
• One continuous spring provides a smoother operation and an extended life for the unit
• UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
• 1/2" Latch Bolt Throw
• Average weight per unit = 4.25 lbs
• Patent# 7,258,374
