ABH - A410LL - Continuous Hinges - Geared - Concealed - Lead-Lined - Full Mortise - Flush Mount - Aluminum - 95" - Heavy Duty - Grade 1
1 / 3
ABH - A410LL - Continuous Hinges - Geared - Concealed - Lead-Lined - Full Mortise - Flush Mount - Aluminum - 95" - Heavy Duty - Grade 1
ABH-A410XXXX

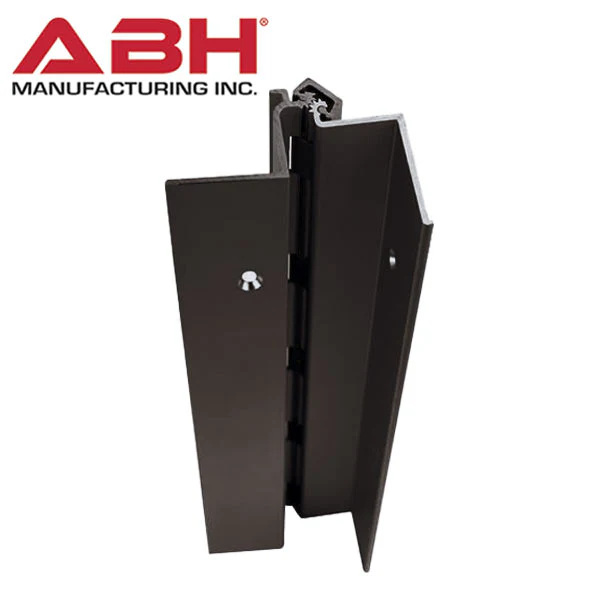

The ABH-A410 is a fully concealed full mortise aluminum continuous geared hinge with a lead-lined staggered hole pattern for doors up to 1,000 lbs. Heavy duty option available for doors up to 450lbs.
Features
- BHMA Grade 1
- Fully concealed
- Lead-Lined for doors up to 1,000 lbs.
- Heavy Duty for doors up to 450 lbs.
- No door inset
- Flush mount
- Swing clear application
- Door edge protection lip
- NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday 9AM-6PM EST
| Specifications | |
|---|---|
| Door Width Max | 48" |
| Max Door Weight Heavy Duty | 450 LBS |
| Avg. Weight Per Unit | 14 LBS |
| Mounting | No door inset, flush mount |
| Fasteners | 12-24 x 7/8" undercut self drilling, thread forming tek machine screws |
| Application | For use on 1-3/4" thick door, square edged only |
| Length | 95" |
| Finishes | Clear, dark bronze, and black anodized |
| Fire Rating | Approved for use on metal swinging type fire doors rated up to and including 90 minutes. Approved for use on wood swinging type fire doors rated up to and including 60 minutes. |
| Downloads |
|---|
| Data Sheet |
| Template |
| Cross References |
| Installation Instructions |
$82.92
Original: $236.92
-65%ABH - A410LL - Continuous Hinges - Geared - Concealed - Lead-Lined - Full Mortise - Flush Mount - Aluminum - 95" - Heavy Duty - Grade 1—
$236.92
$82.92Product Information
