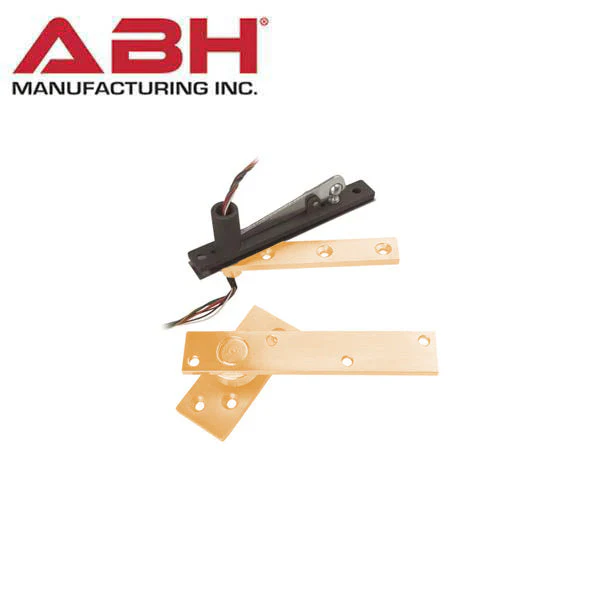

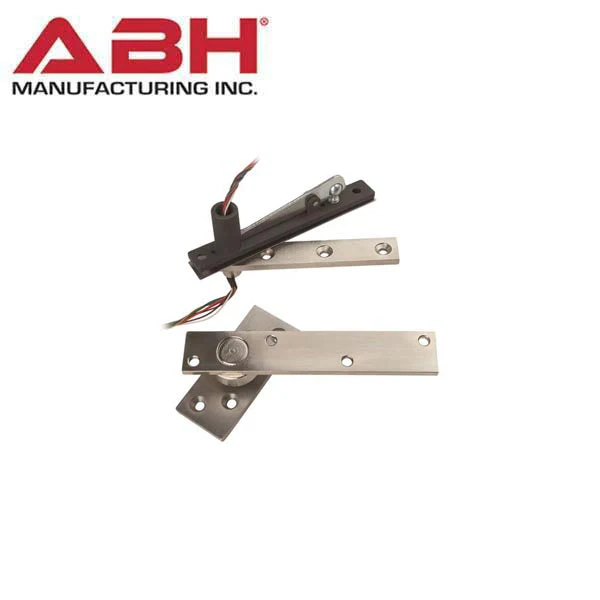

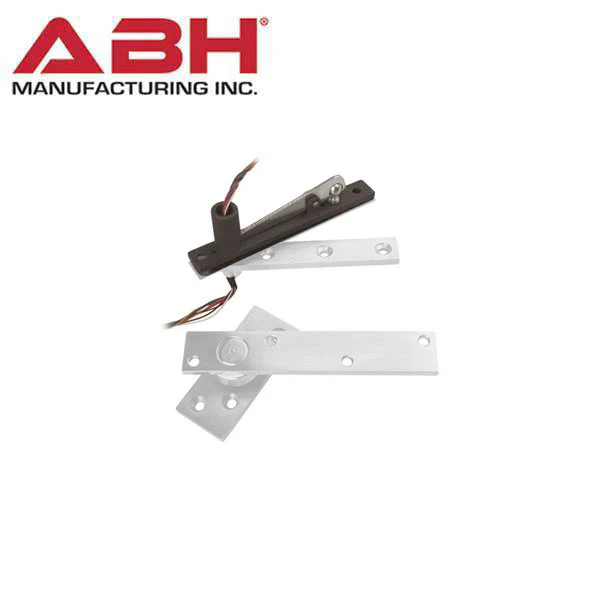

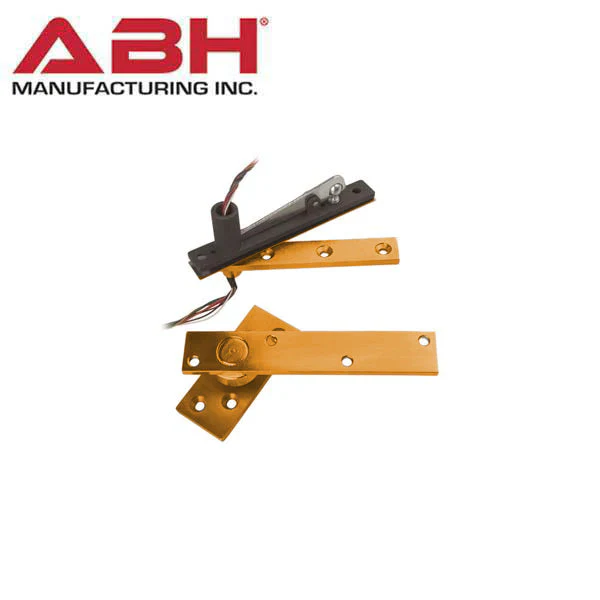

ABH-E0370

Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.

Features:

• Non-Handed
• Pivot set is centered into the door thickness
• Maximum door load 500 lbs.
• Maximum door size - 44" x 102"
• Average weight per unit = 4 lbs



Includes:

• E0340 Top Pivot
  • Frame leaf mortises into header
  • Door leaf mortises into top of door
  • Provides electrical power transfer from the frame to the door
  • (8) 30 AWG Wires
• 0370 Bottom Pivot
  • Bottom leaf mounts on top of finished floor
  • Door leaf mortises into bottom of door

Downloads:

• Spec Sheet
