ABH-PT200SC

Electrical Power Transfers

Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.

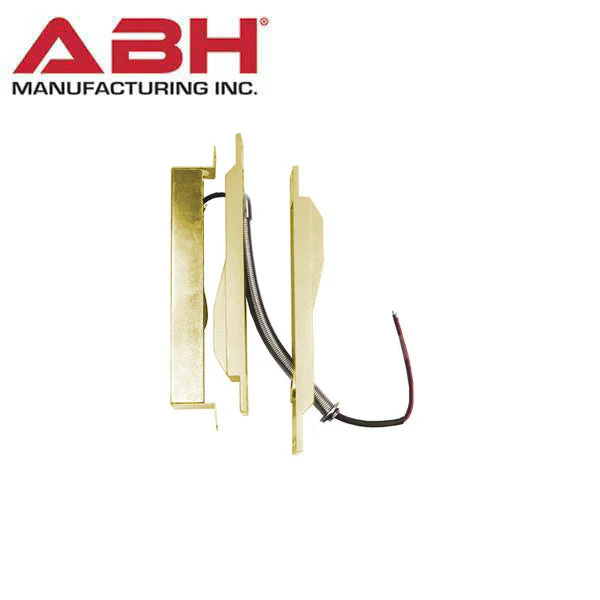

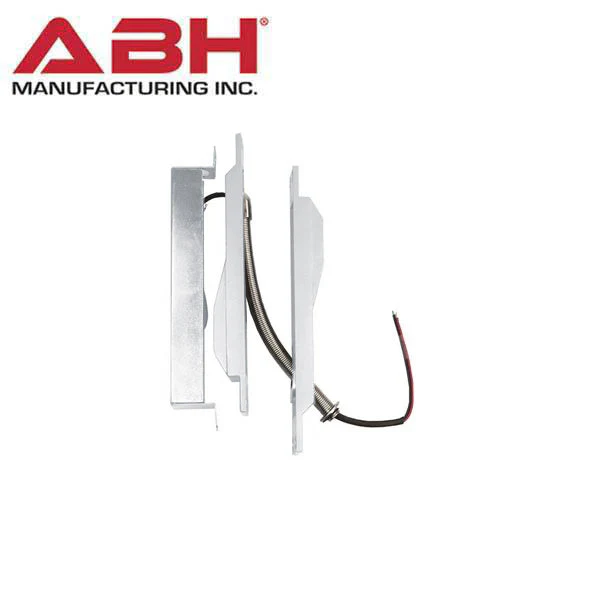

PT200SC

(2) 18 AWG Wires

Max. Rating: 24 VDC, 1A

• Features:
  • Power Transfer (2) 18 AWG Wires for Swing Clear Applications
  • Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.
  • All metal construction including backboxes - NO PLASTIC PARTS
  • Ideal for high abuse or heavy traffic situations
  • UL/ULC Listed for use on fire doors
  • Packaged individually with fasteners for wood, steel, or aluminum doors and frames
  • Approximate shipping weight: 3 lbs.
  • Patent Pending
  • Matches competitor's door and frame prep

• Standard Applications:
  • 1-3/4" - 2-1/4" Door thickness
  • For use with Swing Clear Hinges
  • Door Openings 90° - 180°

Downloads:

• Spec Sheet
