ABS-832XXXX

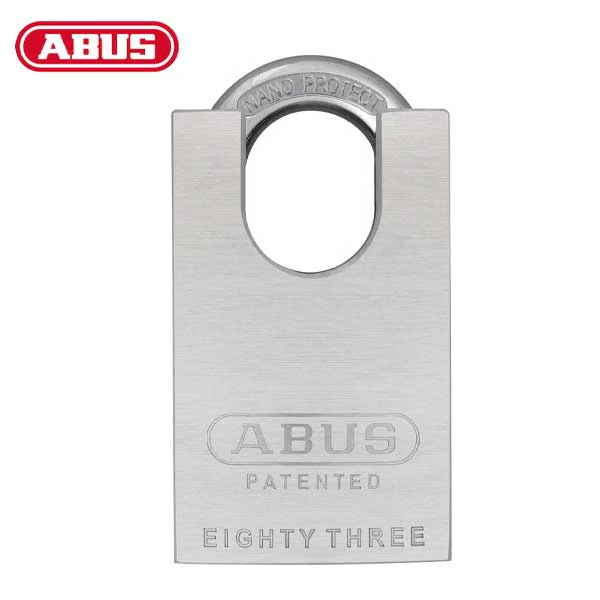

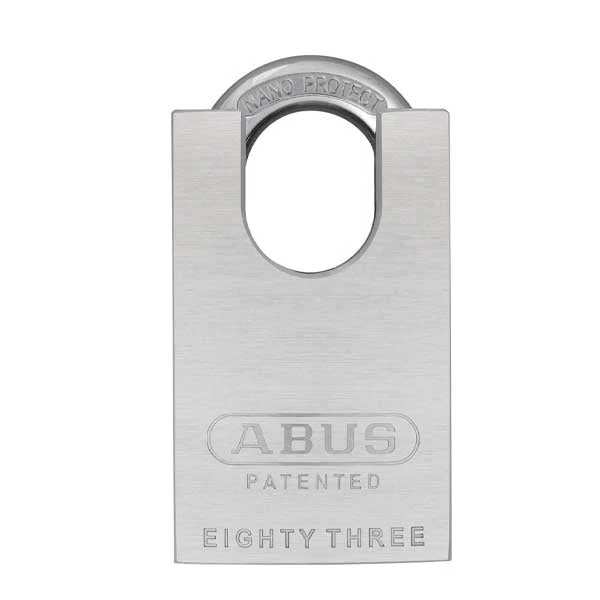

The 83CS series padlock features a chrome plated solid brass body resistance with a shackle made of hardened steel. This padlock is used to secure doors, gates, cabinets, toolboxes, cellar windows, sheds, etc.

•


• To secure valuables/goods of greater value or at a high risk of theft

• To secure gratings, doors, gates, cupboards, tool boxes, cellar windows, sheds, switchboards, barriers, etc.

• Solid brass lock body

• Special alloy steel shackle with NANO PROTECT coating for extra corrosion resistance
• High precision pin tumbler cylinder with patented pinning window

• Patented 2-in-1 function: converts key-retaining to non-key-retaining and vice versa within seconds
• Cylinder can be taken out and can be re-keyed to match an existing key
• Easy shackle change: shackle can be exchanged within seconds
• Shackle guard protects against tool attacks
• Keyway: C or C-L Keyway

Specifications

Lock	83CS/45	83CS/50
Level:	8	8
Depth e:	25/32 inch	13/16 inch
Height f:	3 5/16 inch	3 15/32 inch
Horizontal clearance b:	55/64 inch	55/64 inch
Key Blank:	10023	100239
Locking elements:	6	6
Shackle diameter d:	5/16 inch	3/8 inch
Vertical clearance c:	1 1/32 inch	1 7/64 inch
Weight [lbs]:	0.84 lbs	0.89 lbs
Width a:	1 27/32 inch	1 57/64 inch
