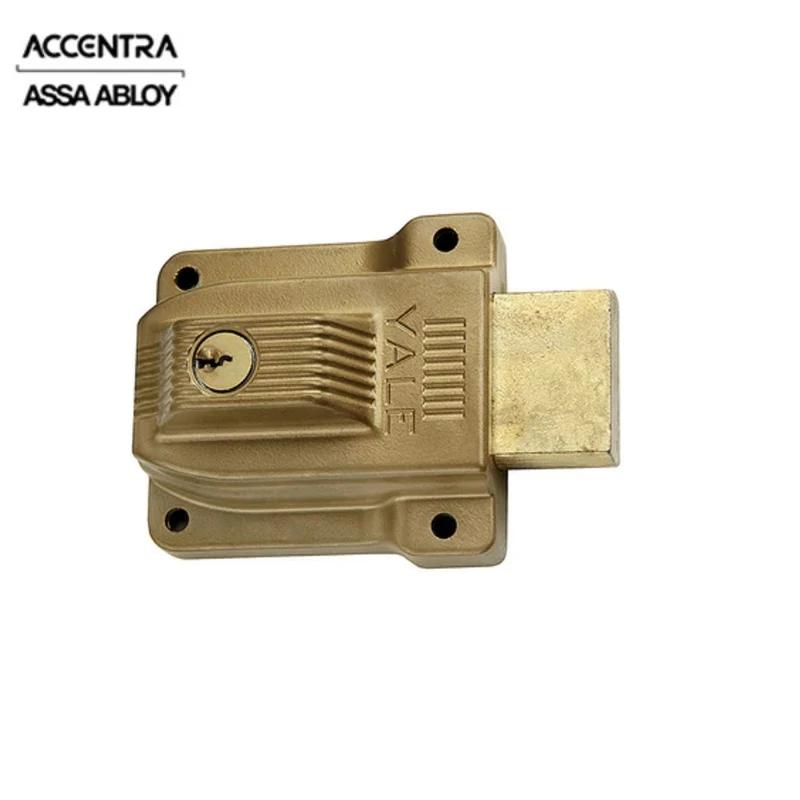

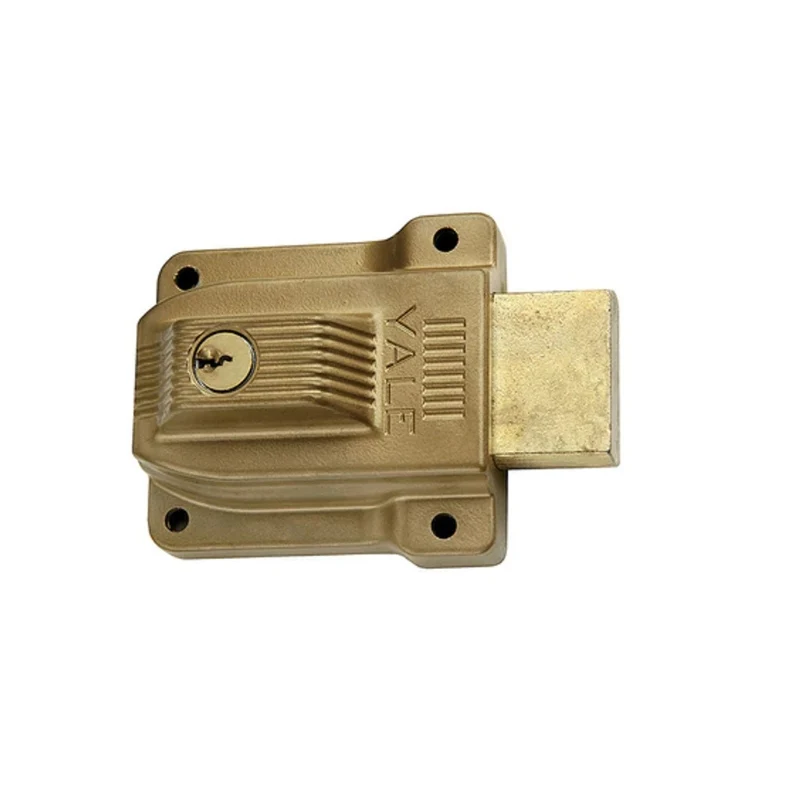

The Accentra (Yale) Double Cylinder Auxiliary Deadbolt is a heavy-duty, non-handed rim-mounted deadbolt featuring keyed access on both sides (double cylinder). Designed for insulated and exterior doors, this lock delivers robust security and reliable operation. It’s rebranded from Yale’s Commercial line under the Accentra name by ASSA ABLOY.

Features:

• Double-cylinder operation: Keyed entry on both exterior and interior cylinders.
• Standard 5‑pin rim cylinder (1109E) with anti-pick mushroom drivers.
• Solid zinc-alloy case, non-handed design (fits 1 3/8″–2 1/4″ doors).
• Fixed backset: 2 3/8″ (60 mm).
• Deadbolt throw: 1 1/8″ (29 mm).
• Includes 2 brass keys (RB8).
• Finish: Sprayed Brass.

Specification	Details
Cylinder (Exterior)	1109E Brass 5‑pin, anti-pick design
Cylinder (Interior)	Fixed 3‑pin brass
Backset	2 3/8″ (60 mm)
Deadbolt Throw	1 1/8″ (29 mm)
Door Thickness	1 3/8″–2 1/4″ (35–57 mm)
Case Material	Zinc Alloy
Finish	Sprayed Brass
Strike Type	Angled (standard); flat for 112‑1/4F
Keys Included	2 RB8 brass keys
Compliance	Non-handed, UL/ULC not listed



Downloads:

• Catalog
