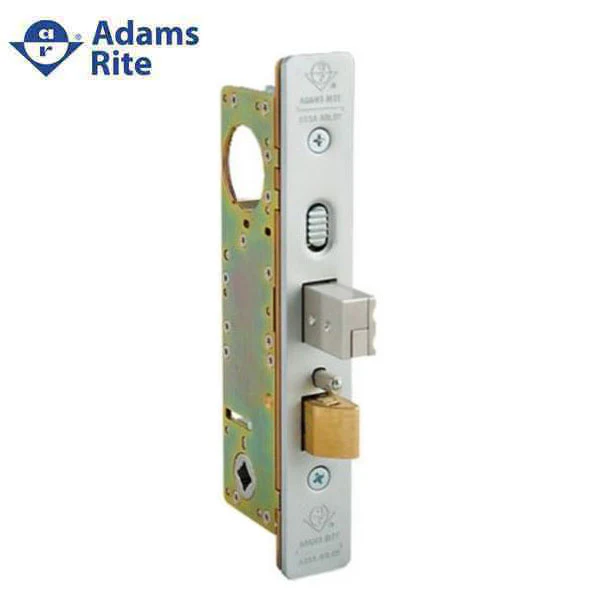

The 2190 series interconnected deadbolt/deadlatch provides access control and security for narrow stile aluminum, hollow metal, and wood doors. Deadlatch and deadbolt capabilities are combined for fast, easy, and panic-proof exiting.

More Details Below

Features

Backset	1-1/8" [28.6 mm]
Case	Steel with corrosion-resistant plating. Measures 1" x 5-13/16" x depth [25.4 mm x 147.6 mm x depth]. Depth varies by backset
Latchbolt	5/8" [15.9mm] throw of solid brass. Easily reversible using only a screwdriver.
Deadbolt	1"[25.4mm] throw of stainless steel.
Auxiliary Bolt	Stainless steel. Deadlocks latchbolt to prevent "loiding" or case-knife entry.
Faceplate	1" x 6-7/8" [25.4 mm x 174.6mm].
Door Types	Aluminum, Swinging Door
Strike	Standard strike furnished is the 2101-01 Strike
Standard Package	Individually boxed with trim as specified, strike and machine screws for mounting.

Downloads

• Data Sheet
• Installation Guide
