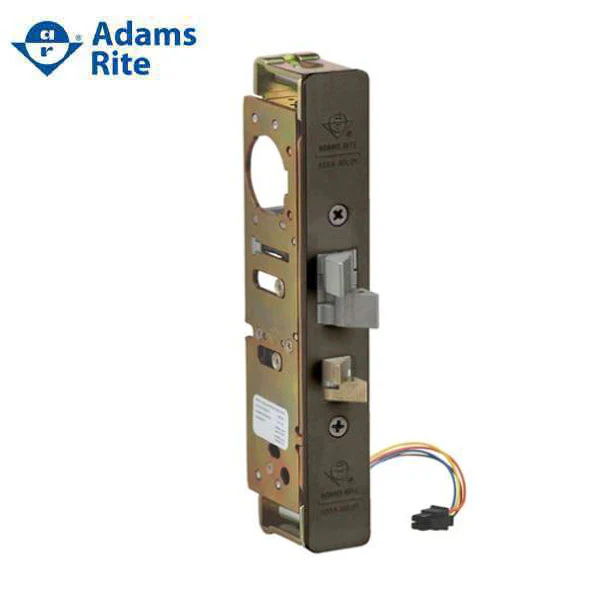

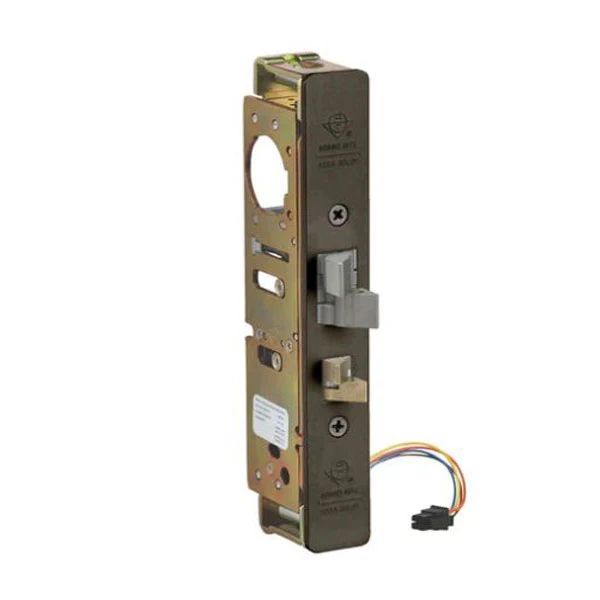

Adams Rite - 4300 - Steel Hawk E-Latch - Electrified Deadlatch - 1-1/2" Backset - Surface Mount - Std Jamb - Dark Bronze - 24VDC
Adams Rite - 4300 - Steel Hawk E-Latch - Electrified Deadlatch - 1-1/2" Backset - Surface Mount - Std Jamb - Dark Bronze - 24VDC
The Steel Hawk® 4300 Electrified Deadlatch is a non-handed, narrow backset, electrified deadlatch designed for easy integration with access control systems. The 4300 Electrified Deadlatch seamlessly combines electrified locking hardware with access control while working within standard narrow stile aluminum entrance door preparations.
Always operable from the inside via handle or paddle device. Entry via keyed mortise cylinder or access control device such as keypad or card reader. Fail secure lock with optional form “C” latch status monitor. The standard fail secure 4300 Electrified Deadlatch operates on 12, 16, or 24 VDC power and is rated for continuous duty.
Units are equipped with a quick connect plug-in type connector. Interchangeable without stile modification for MS® Deadlocks or Adams Rite 4500 and 4900 Deadlatches. 1-3/4" [44.5 mm] minimum door thickness required.
More Details Below
Features
| Cylinder Backset | 1-1/2" [38.1 mm] |
| Case |
Steel with corrosion-resistant plating. Measures 15/16" x 5-13/16" x depth [23.8 mm x 147.6 mm x depth]. Depth varies by backset. |
| Latchbolt | Stainless steel. Measures 5/8" x 1" x 5/8"[15.9 mm x 25.4 mm x 15.9 mm] throw. |
| Auxiliary Bolt | All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry. |
| Faceplate | Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in the field for right or left beveled edge doors. |
| Strike | 4304 no-cut surface mounted strike for easy retrofits. |
| Voltage |
Field-selectable to match power source of 12, 16, or 24 VDC. Current Draw/Amps 0.44A at 12VDC 0.458A at 16VDC *0.23A at 24VDC* Required 16 VDC adapter (P/N VA 7400-16VDC) |
