AIP-JOS-1V

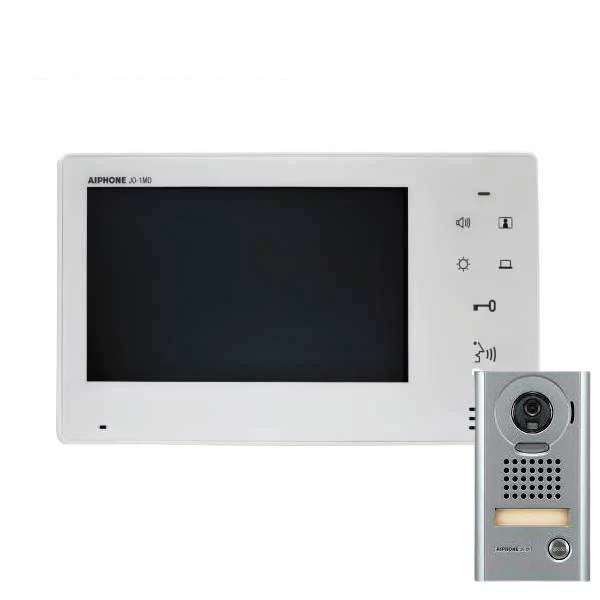

The Aiphone JOS-1V 7" Monitor & Hands-Free Color Video Intercom Set includes the JO-1MD 7” Master Monitor Station with touch buttons and the JO-DA Video Door Station. The JO-1MD Master Monitor Station features a 7” color LCD screen that displays camera images during door-station call-ins, communication with door station, and door-station monitoring. It also has touch buttons that let you control the system. The JO-DA features a 1/4" CMOS color camera that captures images to display on the screens of monitor station.

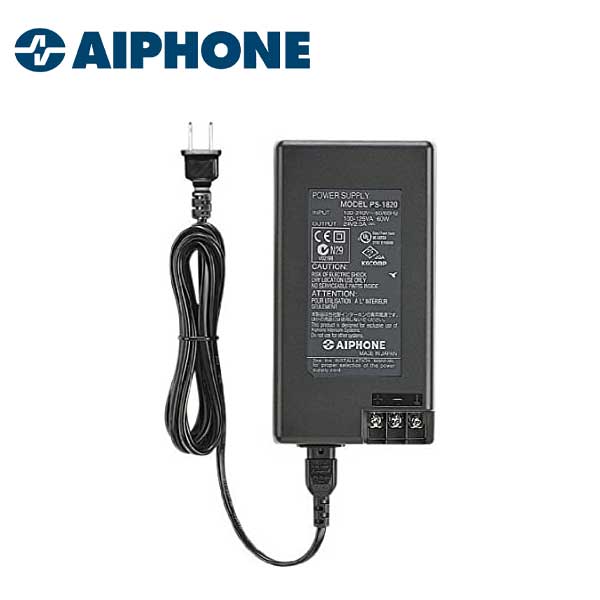

• Box set includes JO-DV, JO-1MD, and PS-1820UL
• Video identification and monitoring with 7″ screen
• Slim design
• Electrostatic touch buttons
• Hands-free communication



Communication:	Hands-free (VOX) or push-to-talk (simplex)
Video Display:	7" LCD screen
Camera:	Type: 1/4" CMOS View Area: 2'1" vertical x 3'1" horizontal at 20
Door Release:	N/O dry contact, 24V AC/DC, 500mA (use RY-18L for larger contact)
Wire Type:	2-cond., low cap, non-shielded - use Aiphone #871802
Distance:	Door Station to farthest Master Station: 165' (22AWG) 330' (18AWG)

Downloads

• Installation Instructions
