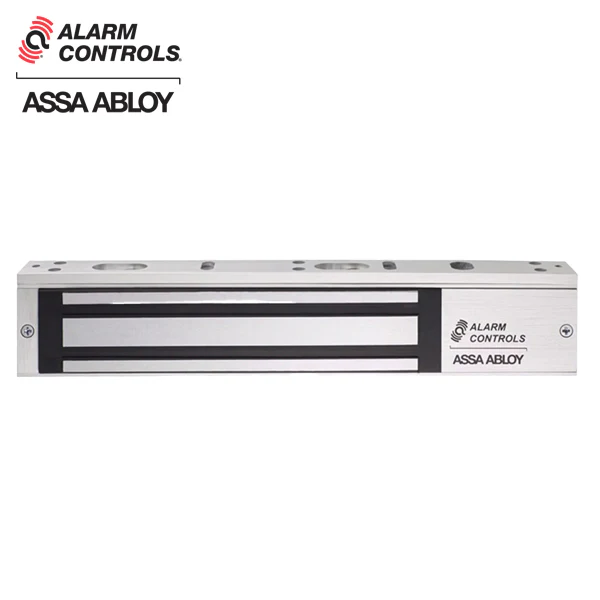

The Maglock 600S ALA300600S is a Bracket-mounted, single magnetic lock with 600 lbs holding force that can be easily installed without special tools and used with any access control system. Ideal for high-use areas for traffic control in interior applications.

Features:

• It can be used with any access control system
• Self-drilling TEC screws
• Non-aluminum parts are plated to resist corrosion
• Instant release, no hysteresis
• Limited lifetime warranty
• E-Z mount system, no special tools required
• Built-in arc suppression
• Utilizes the ACC E-Z mount system for easy installation

Specification:

Armature Depth	0.5"
Armature Height	1.5"
Armature Length	7.25"
Magnet Depth [in]	1"
Magnet Height	1 11/16"
Magnet Length	9 7/8"
Voltage	12 or 24 VDC, field selectable
Current 12v DC	505 mA
Current 24v DC	260 mA
Maximum Operating Temperature	131 °F
Minimum Operating Temperature	14 °F
Holding Force	600
Certifications	CE Certified, UL 294 recognized component
Door Supported	Single Door



Downloads:

• Catalog
• Installation Instructions
