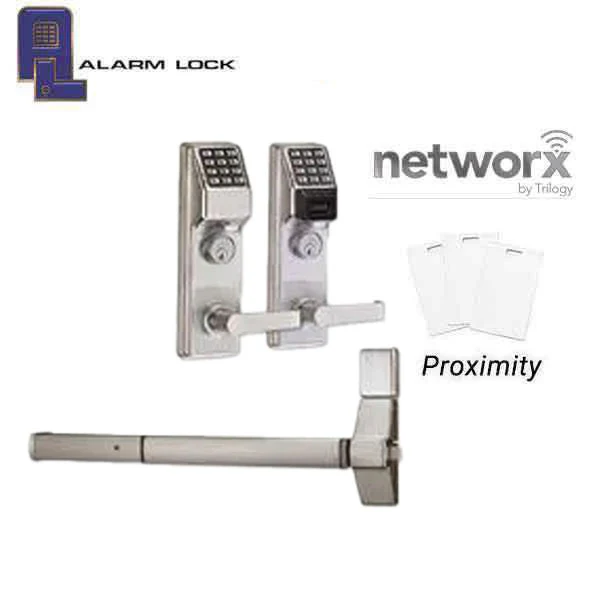

Add Trilogy convenience, programming, flexibility, and audit trail to panic exit mortise locks from most major manufacturers

Please Note: Exit Push Bar is NOT included

Features:

• Compatible with Marks M9900 Push Bars
• Clutch mechanism ensures long life and durability
• Fingertip and/or Windows Programmable
• 2000 User Codes: Master, manager, supervisor and users
• Real-Time Clock for up to 40,000 Event Time/Date-Stamped Audit Trail
• Up to 500 Lock/Unlock Schedules (with Time Zone Support)
• Rugged 12-button Metal Keypad
• Non-Handed; Fully Field Reversible
• Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
• Battery operated; uses 5 AA batteries
• Accepts most HID proximity cards and keyfobs
• Users are individually programmed to use a card only, code only, or for the highest security - both card and code
• Request to exit

Specifications:

Lock Type	For use with exit device
User Codes	5000
Code Length	3-6 digits
Programming	Keypad / PC
Vandal-Proof Keypad	All Metal 12-button
Audit Trail Events	40000
Scheduled Events	500
Lockdown	Global lockdown via server or optional keyfob
Door Thickness	1-5/8" to -7/8"
Battery Cycles	4 Cells; 500,000 or up to 5 years
Request to Exit	ETPDN-RX; ETPDNI-RX with iClass support





Downloads:

• Specifications
