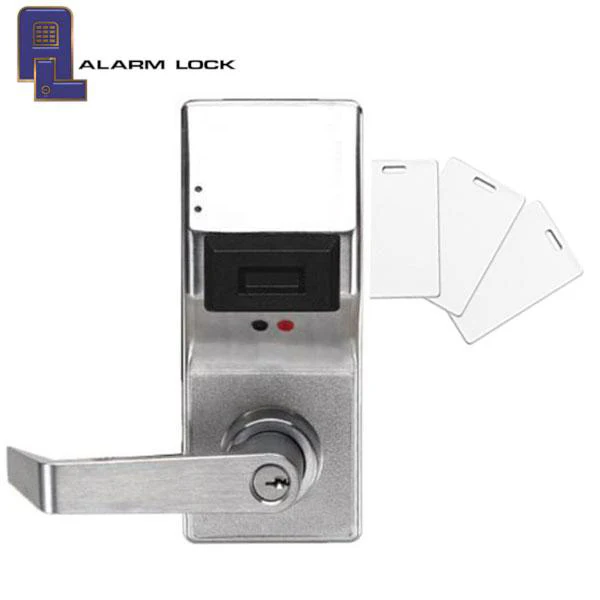

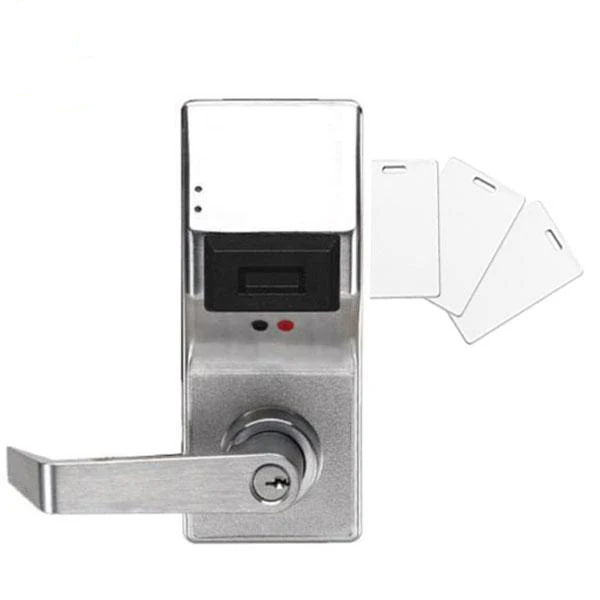

Alarm Lock Trilogy - PL3000 - Digital PROX ONLY Lever Set w/ Audit Trail - 26D - Satin Chrome
Alarm Lock Trilogy - PL3000 - Digital PROX ONLY Lever Set w/ Audit Trail - 26D - Satin Chrome
ALL-PDL3000-26D
With Alarm Locks PL3000 Digital PROX ONLY Lever Lock you can discard keys from public hands so that they can't be misplaced. Trilogy prox locks quietly defend against the toughest security challenges by allowing safe, quick access to only authorized personnel in government buildings and businesses of all sizes.
More Information Below
SPECIFICATIONS:
| LOCK FUNCTION | Entrance Digital PROX Keypad Lever Lock w/ Audit Trail |
| DOOR THICKNESS | 1 5/8″ to 1 7/8″ standard. For 1 3/8″ doors use HW567 & HW569 spacers. |
| BACKSET | 2 3/4″ Standard |
| HANDING | Non-handed; fully field-reversible |
| STRIKE | 1-1/8” x 2-3/4” T strike standard. With screws for wood or metal jambs. 1 1/4″ x 4 7/8″. ASA strike also included. |
| KEYPAD | No Keypad |
| LEVER TRIM | Aluminum door retrofit outside trim for Adams Rite®️ 1850, 1950,4710, 4070*, 4730, 4900 Series |
| POWER | 5AA alkaline batteries, supplied. Long-battery life. Audible low battery alert, visual and audible entry indicators, 60,000 cycles typical. |
| STANDARD KEY OVERRIDE CYLINDER | Solid brass 6 pin tumbler cylinder keyed 5, SCI keyway, furnished in all K.O. models. Tailpieces for Schlage (HW580) & Lori (HW620) cylinders (furnished). |
| KEYS | 2 Keys Included |
| PROGRAMMABLE | Locking modes, event schedules, group, individual, master, management, passage, and emergency service codes. Lockout, remote override capability, and allowable entry time (3, 10, or 15 seconds), are programmable through the keypad. |
| USER CODES | support 2000 users by PIN, HID Prox ID cards, or fobs. 40,000 events audit trail by the user and 500 events schedule/real-time clock (e.g. lock/unlock by time) |
| PROXIMITY FREQUENCY | 125 kHz |
| WEATHERPROOF | -31˚ to +151˚F (-35˚ to +66˚C) |
| CONSTRUCTION | Zinc Alloy, Vandal Resistant |
| FINISH | 26D Satin Chrome |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
Downloads:
Specifications
Original: $1,000.64
-65%$1,000.64
$350.22Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
ALL-PDL3000-26D
With Alarm Locks PL3000 Digital PROX ONLY Lever Lock you can discard keys from public hands so that they can't be misplaced. Trilogy prox locks quietly defend against the toughest security challenges by allowing safe, quick access to only authorized personnel in government buildings and businesses of all sizes.
More Information Below
SPECIFICATIONS:
| LOCK FUNCTION | Entrance Digital PROX Keypad Lever Lock w/ Audit Trail |
| DOOR THICKNESS | 1 5/8″ to 1 7/8″ standard. For 1 3/8″ doors use HW567 & HW569 spacers. |
| BACKSET | 2 3/4″ Standard |
| HANDING | Non-handed; fully field-reversible |
| STRIKE | 1-1/8” x 2-3/4” T strike standard. With screws for wood or metal jambs. 1 1/4″ x 4 7/8″. ASA strike also included. |
| KEYPAD | No Keypad |
| LEVER TRIM | Aluminum door retrofit outside trim for Adams Rite®️ 1850, 1950,4710, 4070*, 4730, 4900 Series |
| POWER | 5AA alkaline batteries, supplied. Long-battery life. Audible low battery alert, visual and audible entry indicators, 60,000 cycles typical. |
| STANDARD KEY OVERRIDE CYLINDER | Solid brass 6 pin tumbler cylinder keyed 5, SCI keyway, furnished in all K.O. models. Tailpieces for Schlage (HW580) & Lori (HW620) cylinders (furnished). |
| KEYS | 2 Keys Included |
| PROGRAMMABLE | Locking modes, event schedules, group, individual, master, management, passage, and emergency service codes. Lockout, remote override capability, and allowable entry time (3, 10, or 15 seconds), are programmable through the keypad. |
| USER CODES | support 2000 users by PIN, HID Prox ID cards, or fobs. 40,000 events audit trail by the user and 500 events schedule/real-time clock (e.g. lock/unlock by time) |
| PROXIMITY FREQUENCY | 125 kHz |
| WEATHERPROOF | -31˚ to +151˚F (-35˚ to +66˚C) |
| CONSTRUCTION | Zinc Alloy, Vandal Resistant |
| FINISH | 26D Satin Chrome |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
