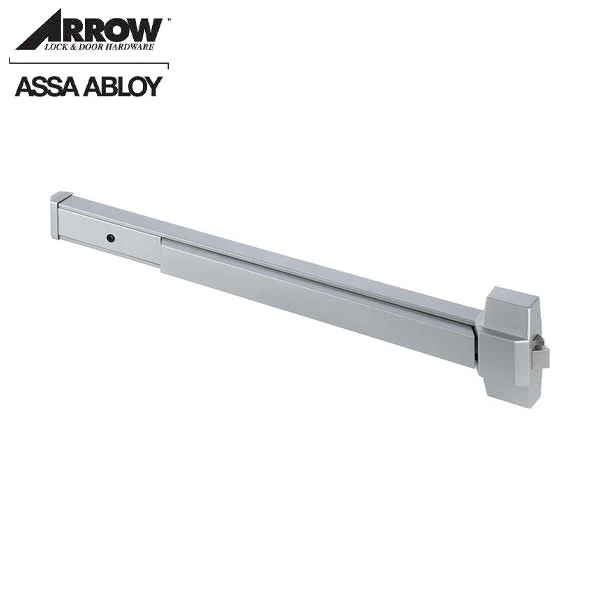

Arrow - ED910 - Rim Exit Device - for 31" - 36" Doors - Aluminum Finish - Grade 1
The Arrow ED910 is a value exit device that is BHMA Grade 1 Certified. The ED910 is designed to replace or upgrade existing exit devices and comes with an extended 10 year warranty.
Features
- ANSI/BHMA A156.3, Grade 1
- 10-Year Warranty
- Reversible Handing
- AL - Aluminum Finish
| Specifications | |
|---|---|
| Chassis | Stamped steel materials |
| Chassis Cover | Cast zinc |
| Door Types | Fits 1-3/4" (44.5 mm) doors standard |
| Door Width | 31" - 36" |
| Stile | 4-1/2" (144.30mm) minimum |
| Mounting | Supplied with wood and machine screws |
| Handing | Reversible |
| Dogging | Hex-type hold down |
| Latchbolt | Stainless steel |
| Rail Assembly | Powder Coated Steel |
| Strike | ES90 Strike |
| Warranty | 10 year warranty |
| Finish | AL Aluminum (Sprayed Finish) |
| Certifications | -ANSI/BHMA A156.3, Grade 1 -Underwriters Laboratories (UL and CUL) Listed for accident hazard (panic) standard. -All exit devices comply with life safety code NFPA 101 |
| Downloads |
|---|
| Data Sheet |
$182.08
Arrow - ED910 - Rim Exit Device - for 31" - 36" Doors - Aluminum Finish - Grade 1—
$182.08
