ASSA - M90 Series - Maximum+ Restricted - Double Cylinder Deadbolt - Optional Keying - 626 - Satin Chrome - Grade 2
ASSA - M90 Series - Maximum+ Restricted - Double Cylinder Deadbolt - Optional Keying - 626 - Satin Chrome - Grade 2
ASS-R28M9020-626-COMP-KA / ASS-R28M9020-626-COMP-KD

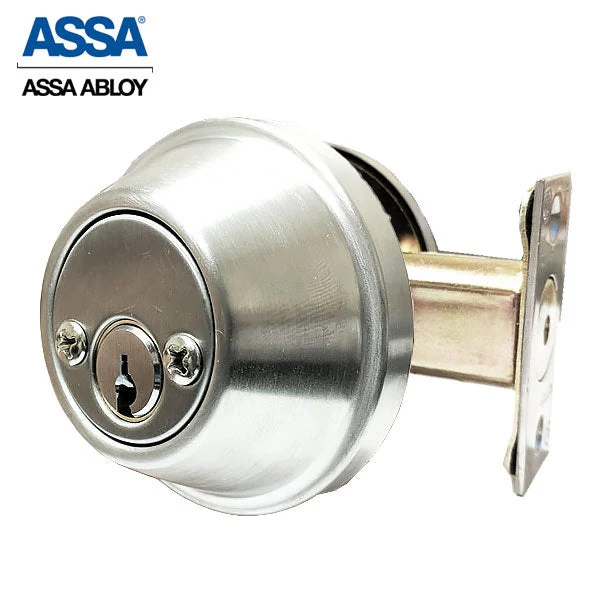

ASSA - M90 Series - MAX+ / Maximum+ High Security Restricted Double Cylinder Deadbolt - 626 - Satin Chrome - Grade 2 features a saw-resistant bolt, pick resistant ASSA cylinder, and an adjustable 2 3/8" or 2 3/4" backset
Restricted: Has only 1 independent locking mechanism. No Side pins.
| Handing | Non-Handed for Left or Right hand doors |
| Cylinder |
Maximum+ Restricted Cylinder Double Cylinder with Thumb Turn Interior |

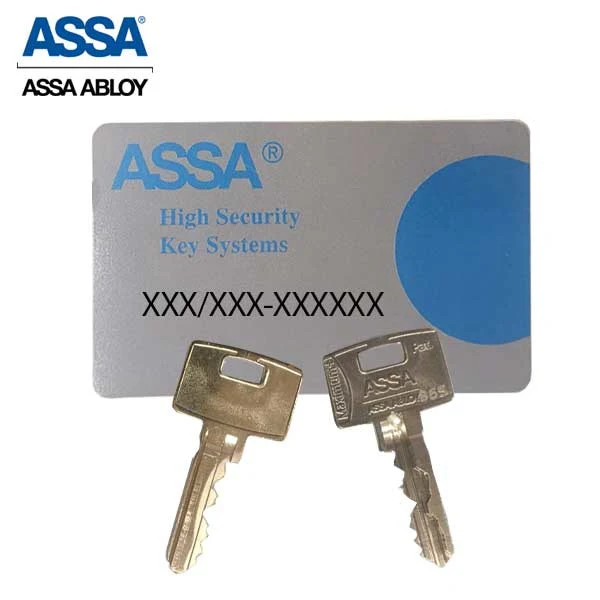

| Keys | 2 Patented Restricted Keys & Duplication Card |
| Keyed | Alike / Different |
| Door Thickness | 1-3/8" (35mm) to 1-3/4" (45mm) |
| Backset | Adjustable Backset 2-3/4" (70 mm) to 2 3/8" (60 mm) |
| Bolt | Steel hardened bolt pin |
| Rosette |
Steel core rosette |
| Features | Security Shield - Guards against ice pick attack |
| Finish | 626 - 32D - Satin Stainless |
| Certifications |
ANSI/BHMA A156.5 Grade 2 & UL 3 hours fire rating certified |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
