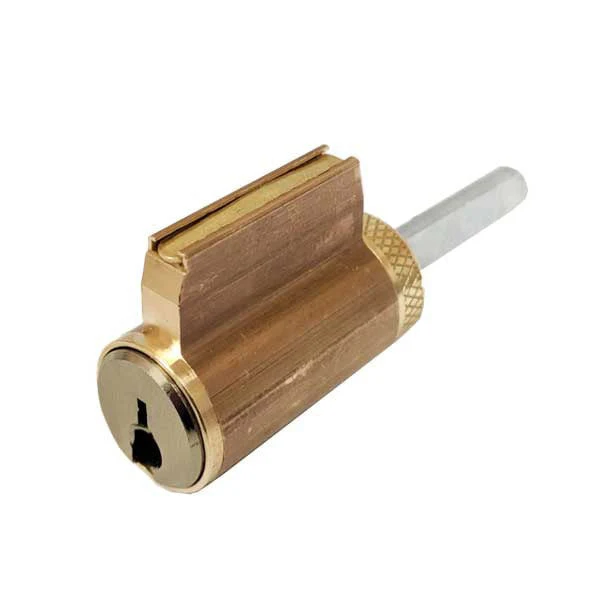

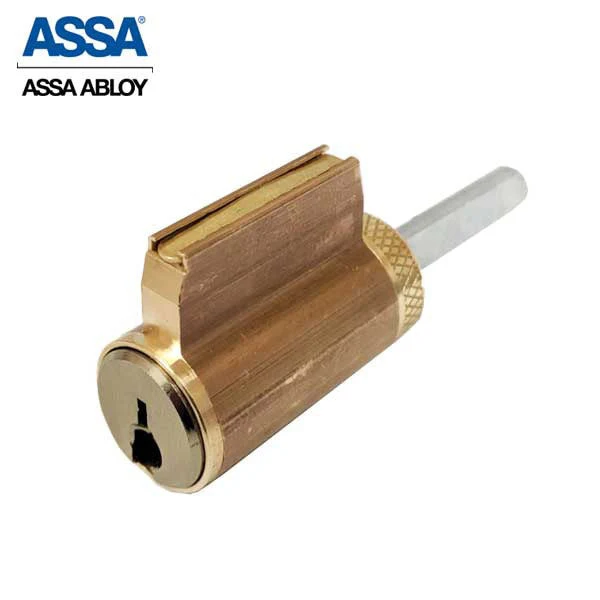

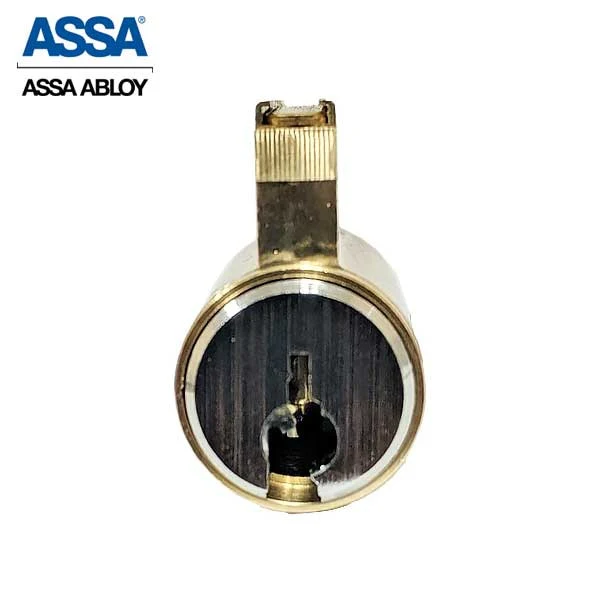

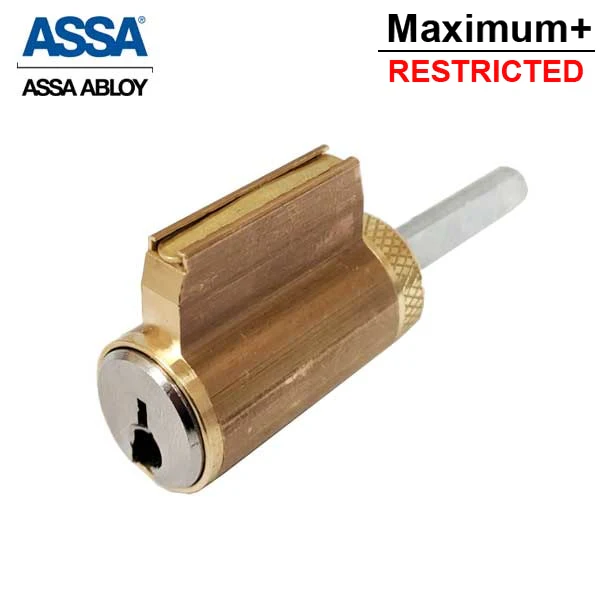

ASS-R28611-626-COMP / ASS-R28611-606-COMP

The ASSA Key in Knob/Key in Lever cylinders are designed to replace many original manufacturers’ cylinders in their locksets including Arrow, Corbin/Russwin, Falcon, Sargent, Schlage, Yale and many other manufacturers thus offering the highest level of security available on the market today. The R28611 Maximum+ Restricted

Restricted: Has only 1 independent locking mechanism. No Side pins.

Features:
• Counter mill in each chamber position to further enhance pick resistance
• Cylinder shell and plug made of high quality brass
• Stainless steel top pins
• Bottom pins and master pins are nickel silver
• Extremely close tolerances
• Can be easily rekeyed in the field
• Patented key control

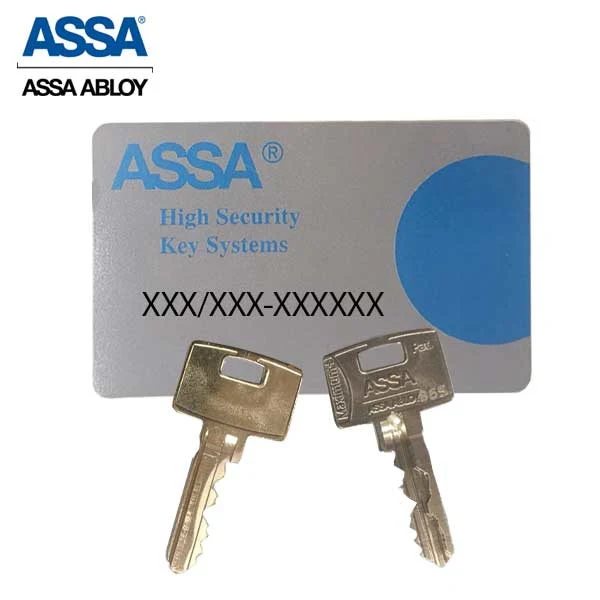

Includes: 2 Patented Restricted Keys & Duplication Card

Patented Keyway	Maximum+ Restricted
Keyed Alike	Keyed Alike up to 12 (KA12)
Application	B series Deadbolts, Corbin/Russwin CL3300, CL3400, CL3600, CL3700, CK4700, CL3900 (Must use original manufacturer's tailpiece and stabilizing sleeve). CK4400 for all functions except 29, 55, & 82. Also use for A5 & N5 exit trim
Includes:	Includes cap, pin, spring and break-off tailpiece
Certification	All ASSA Key-in-Knob/Lever cylinders are U.L. 437 listed
Warranty	ASSA warrants its cylinders against defective workmanship or wear resulting from defects for one year against manufacturer’s defects



Diagram
