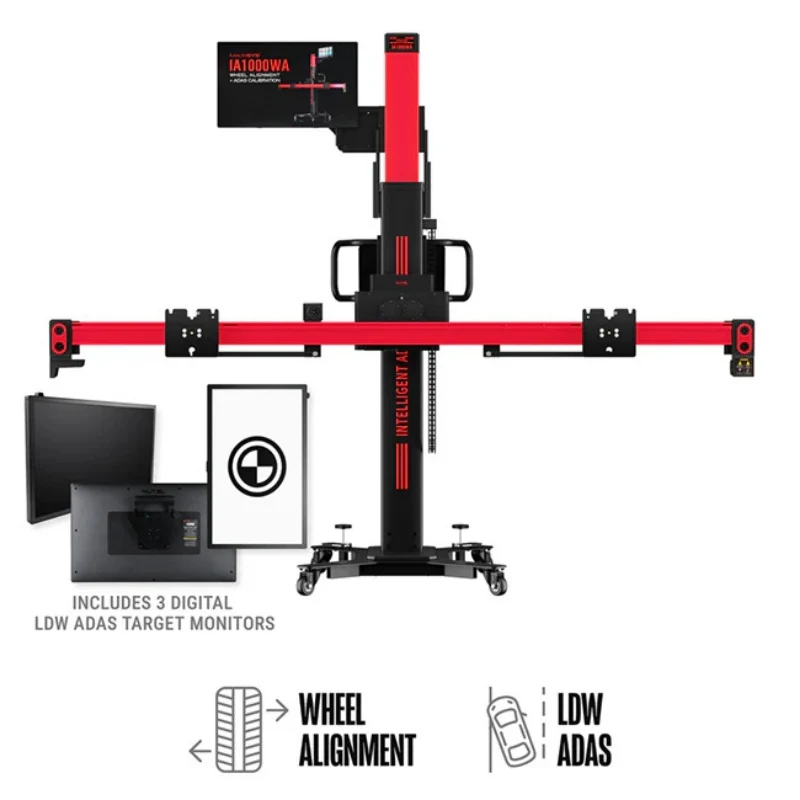

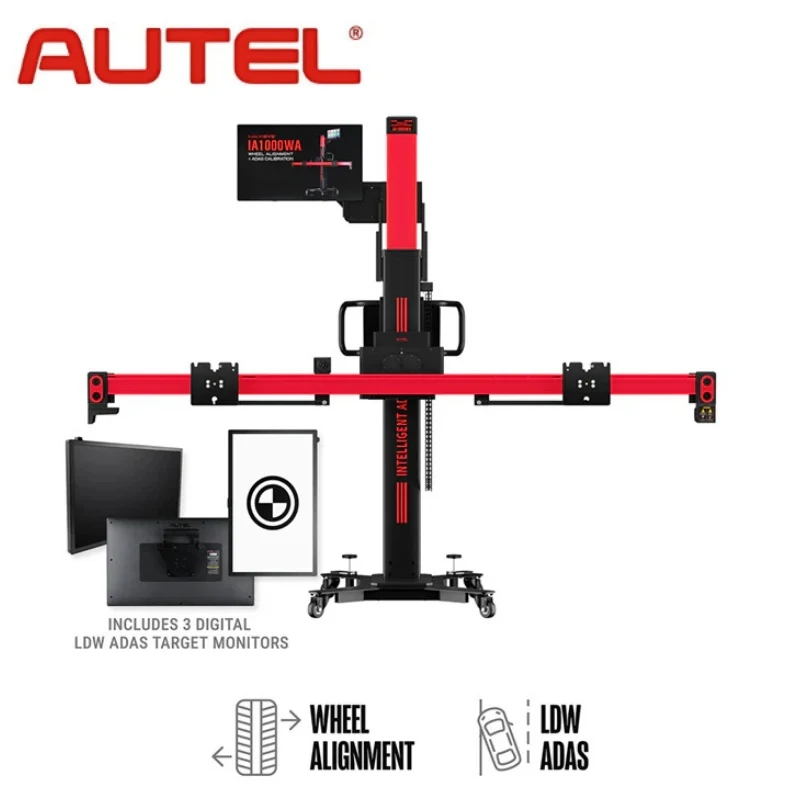

The Autel IA1000 Automated Wheel Alignment and ADAS System with Digital Targets is an advanced, fully automated system designed for both four-wheel alignment and ADAS calibration. It features a robotic calibration frame equipped with six high-definition cameras, offering industry-leading accuracy of ±0.02°. The system includes three 27-inch digital monitors for LDW target projection, a 24-inch touchscreen display, and essential accessories to streamline operations. Compatible with U.S., Asian, and European vehicles, the IA1000DT enhances efficiency and precision in modern automotive service centers.

Features:

• Fully automated 5-axis robotic calibration frame (pitch, roll, yaw, height, width)
• Six high-definition cameras for precise measurements
• Three 27-inch digital monitors for LDW target projection
• 24-inch touchscreen display attached to the frame for intuitive control
• Comprehensive four-wheel alignment and ADAS calibration capabilities
• Laser-guided ACC, blind spot calibrator, and AVM mat placement
• Unlevel floor compensation for versatile shop environments
• Supports OEM-compliant procedures with OTA updates
• Requires MaxiSYS Ultra S2 tablet and IA1000 activation card (sold separately)

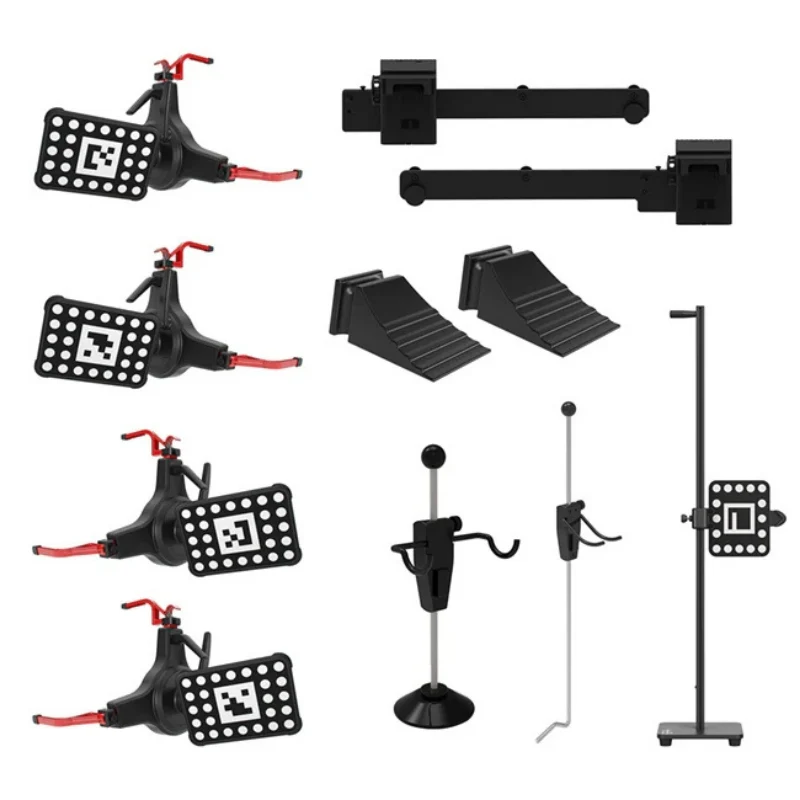

Included Components:

• IA1000 Robotic Calibration Frame
• Three 27-inch Digital Monitors for LDW Targets
• Digital Target Activation Card
• 24-inch Touchscreen Display (mounts to frame)
• Four Tire Clamps
• Steering Wheel Lock
• Brake Pedal Lock
• Distance Target
• Two AVM Placement Lasers
• Two Wheel Chocks
