The Autel MaxiBAS BT608 Battery Diagnostic Tool is a professional analysis tool for testing 6- and 12-volt batteries from 100-3000 CCA. It covers Flooded, AGM, AGM Spiral, EFB, and GEL Cell batteries. With the Adaptive Conductance technology, you can get the most accurate test results and reduce the misdiagnosis to the lowest.

Features:

• Adaptive Conductance Technology: Delivers more accurate assessments of a battery’s cold cranking ability and reserve capacity, reducing misdiagnosis significantly
• Versatile Battery & System Testing:
  • Supports 6V and 12V batteries (100–3000 CCA) and 12V/24V cranking and charging systems
  • Compatible with battery types: Flooded, AGM, AGM Spiral, EFB, and GEL, and various standards: CCA, CA, SAE, EN, IEC, DIN, JIS, MCA
• Comprehensive Diagnostics:
  • Enables in-vehicle and out-of-vehicle tests.
  • Includes AutoVIN/VINScan features for fast vehicle identification and battery spec retrieval
  • Reads and clears fault codes across all vehicle systems

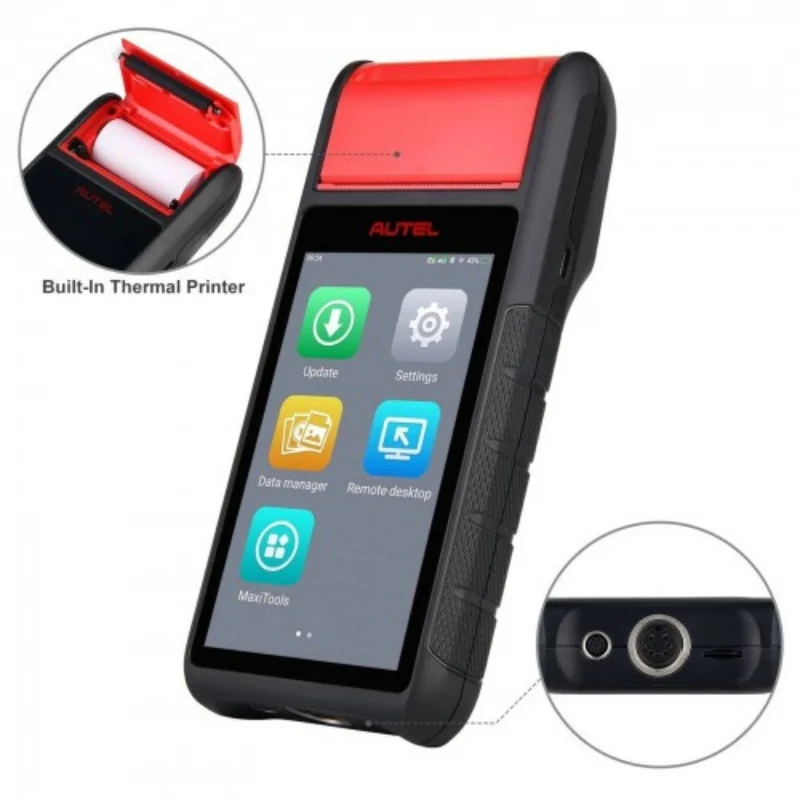

• Built-in Thermal Printer & Reporting:
  • Instantly prints diagnostic reports.
  • Supports Wi-Fi report sharing (email, PC app) and full data management capabilities
• Robust Tablet Hardware:
  • OS: Android 9.0.
  • Display: 5.5-inch capacitive touchscreen (720×1280 resolution).
  • Processor: Quad-core Cortex-A35 @ 1.5 GHz
  • Memory: 32 GB storage, 2 GB RAM.
  • Camera: 8 MP (for VIN/barcode scanning).
  • Connectivity: Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 5.0 + EDR, USB-C.
  • Battery: 7.7 V, 3000 mAh internal battery; ~6-hour runtime.
  • Misc: Input 5 V DC, 450 mA working current, operating temp 0–50 °C (32–122 °F), storage temp −10–60 °C (14–140 °F)

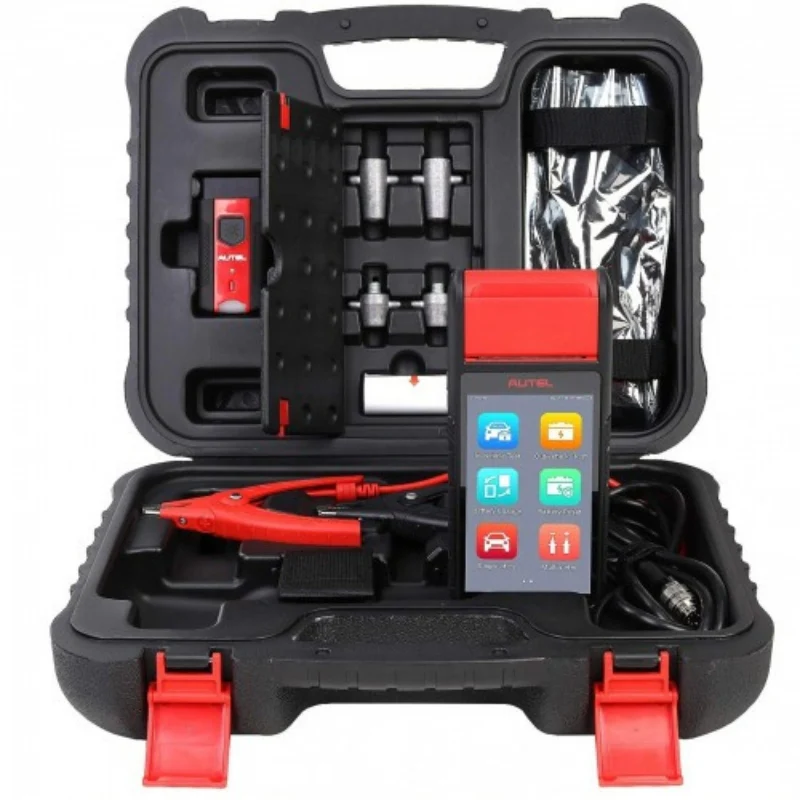

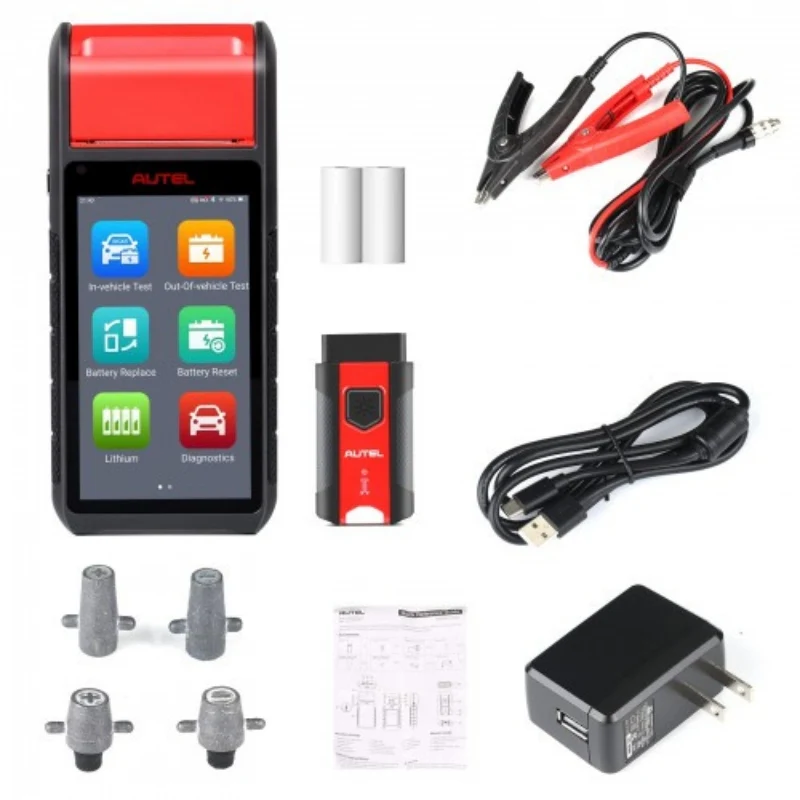

• Accessories & Kit Contents:

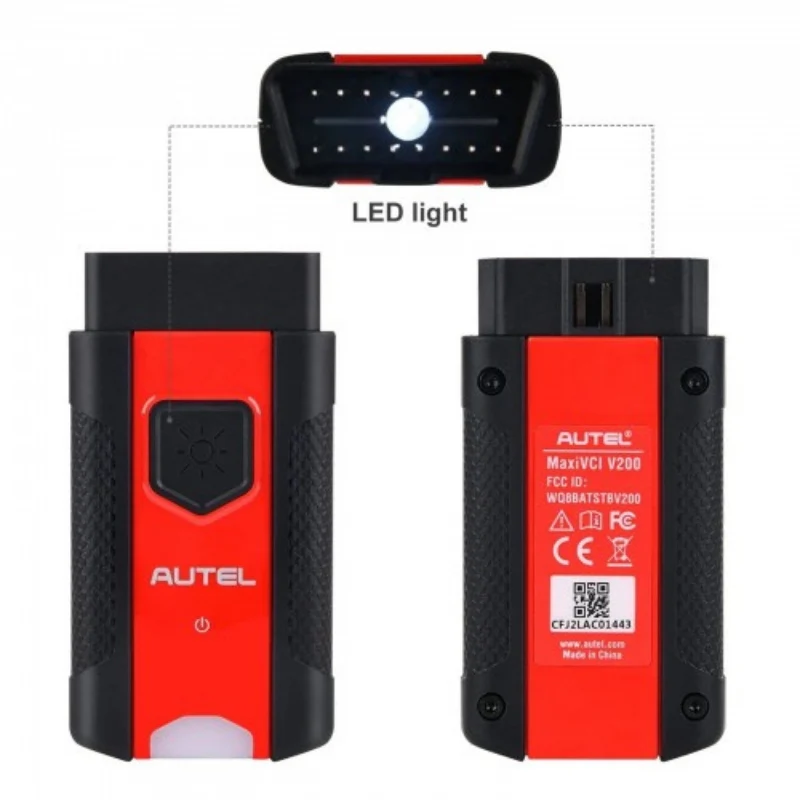

  • Tablet main unit, Bluetooth VCI (MV200 series), battery clamp cable (with temperature sensor).
  • Side-post terminals (type S & T), thermal paper rolls (2), USB cable, power adapter, hard case, quick start/reference guides.
  • Optional accessories: DVOM leads, amp clamp

Specification	Details
Operating System	Android 9.0
Display	5.5″ capacitive touchscreen, 720×1280 resolution
Processor	Quad-core Cortex-A35 @ 1.5 GHz
Memory & Storage	2 GB RAM, 32 GB internal storage
Camera	8 MP
Connectivity	Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 5.0 + EDR, USB-C
Internal Battery	7.7 V, 3000 mAh (approx. 6 hours runtime)
Input Power	5 V DC; 450 mA working current at 7.7 V
Temperature Range	Operating: 0–50 °C (32–122 °F); Storage: −10–60 °C (14–140 °F)
Weight & Size	204 × 90 × 32 mm (8.03″ × 3.54″ × 1.25″); 510 g (1.12 lb)
Battery Test Range	6V / 12V batteries, 100–3000 CCA
Supported Battery Types	Flooded, AGM, AGM Spiral, EFB, GEL
Standards Supported	CCA, CA, SAE, EN, IEC, DIN, JIS, MCA
System Testing	12V & 24V cranking/charging system tests; read/erase fault codes
Vehicle ID Features	AutoVIN, VINScan
Printer & Reports	Built-in thermal printer; Wi-Fi/email/PC report sharing
Adaptive Conductance	Yes (enhanced accuracy for battery health assessment)
Kit Includes	Tablet main unit, Bluetooth VCI, battery clamp cable (with temp sensor), side-post terminals (S & T), 2× thermal paper rolls, USB cable, power adapter, hard case, quick start/reference guides
Optional Accessories	DVOM leads, amp clamp
