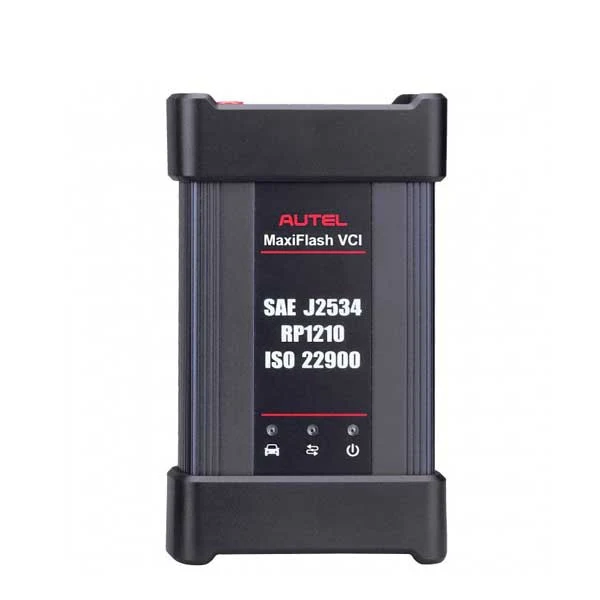

The MaxiFlash VCI is a bluetooth-enabled vehicle communication interface (VCI) and a J2534-1 and J2534-2 compliant pass-thru programming device. Supports CAN FD, 4 CAN Channels, D-PDU, IS O22900-1 & ISO 22900-2 protocols and is RP1210 compliant. Can be used with a Windows computer with an applicable OE subscription for vehicle module programming and when connected to the MaxiSYS MS909 tablet for compatible BMW and Mercedes vehicle module programming. Includes One-Year Limited Warranty. This unit comes without cables or a carrying case - upgrade with Autel.

• Compatible with the MaxiSYS MS909 diagnostic tablet and MaxiIM IM608 PRO II

• Use with windows PC for vehicle module programming, J2534-1 & J2534-2 compliant
• Bluetooth-enabled communication interface

• Support CAN FD, 4 CAN Channels, and DoIP

• Supports D-PDU, IS O22900-1 & ISO 22900-2

• Program BMW & Mercedes from MaxiSYS MS909 Tablet

• RP1210 compliant

• Includes One-Year Limited Warranty

Communications	Bluetooth V2.1 + EDR USB 2.0 Wi-Fi 5G Ethernet
Wireless Frequency	5 GHz
Input Voltage Range	12V DC to 24 V DC
Supply Current	170mA at 12 V DC 100 mA at 24 V DC
Operating Temperature	0° C to 50° C
Storage Temperature	-20° C to 60° C
Dimensions (L x W x H)	168.6 mm x 99.7 mm x 38 mm



Downloads:

• Quick Sheet

• Data Sheet

Includes:

• Main Unit MaxiFlash VCI device
