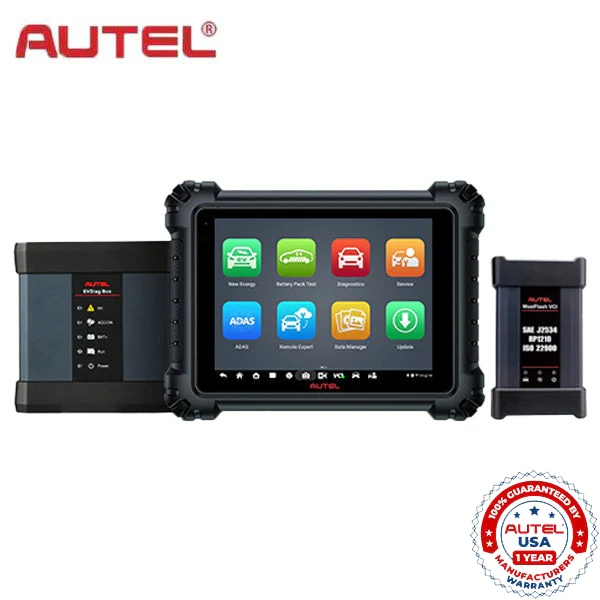

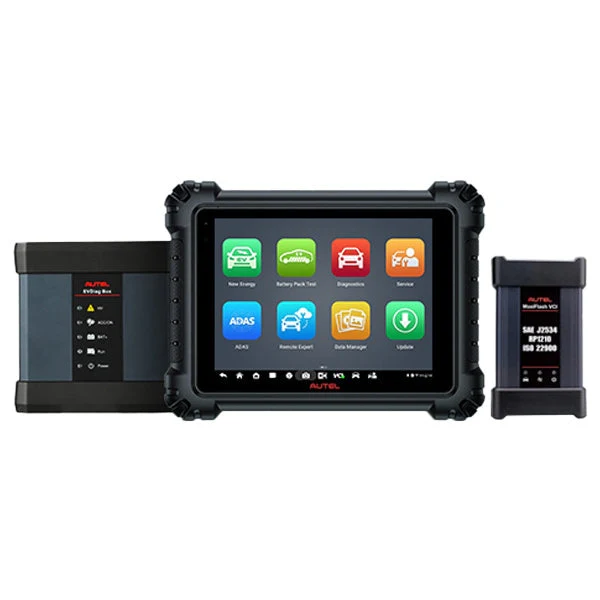

The MaxiSys MS909EV is a 9.7-inch touchscreen advanced diagnostics tablet compatible with U.S., Asian, and European electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, detailed graphics, system information, and step-by-step probe and cable connection instructions, the MaxiSYS 909EV provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics. Includes one year of software updates and is covered by a one-year limited warranty.

Features and benefits:

• Advanced diagnostics for U.S., European, and Asian electric, gas and diesel, and hybrid vehicles
• Rapid analysis of EV high-voltage system including the ability to read and erase codes and view live data
• Comprehensive diagrams of the high-voltage system block, components, and sockets; Step-by-step system disassembly instructions and probe and cabling connection instructions.
• State of Charge and State of Health analysis for true battery condition
• Perform battery analysis via OBDII port, specialty cables, and jumpers
• Automatic system and software updates with real-time push message notifications via the internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well-organized
• Cloud-based Data Manager saves customer and vehicle records, scanner data, and technician notes



Specifications:

Operating System	Android 10.0
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO) BT V5.0 + BR/EDR GPS USB 2.0 (2 USB TYPE-A ports and a Mini USB port) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 16 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jac
Power and Battery	15000mAH 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/1.3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

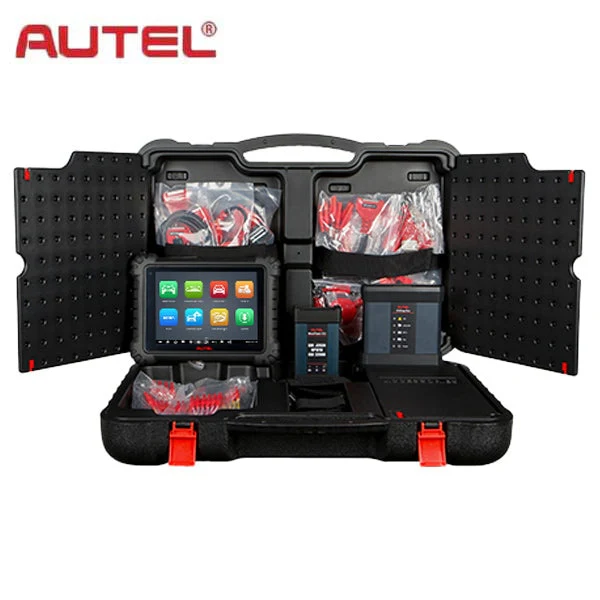

Accessories:

Downloads:

• Quick Guide



Autel USA Tech Support: 855-288-3587
