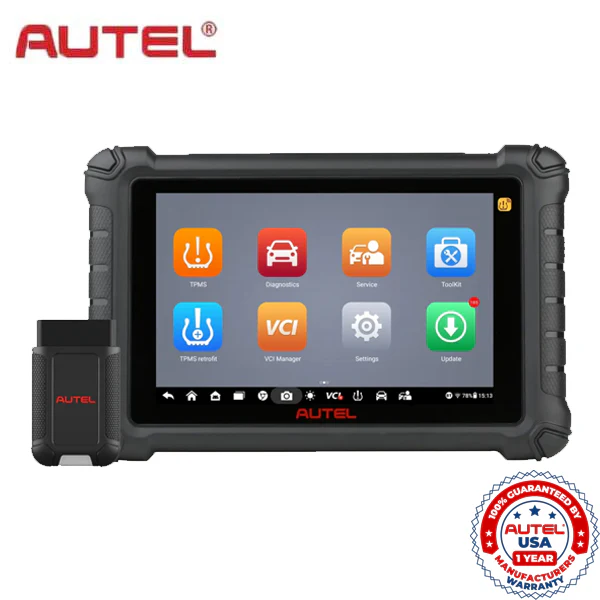

Autel - MaxiTPMS - TS900 - 3-in-1 TPMS, Diagnostics, & Service Wireless Tablet
The MaxiTPMS TS900 is an 8-inch, three-in-one, TPMS, diagnostics, Service, wireless touchscreen tablet. The TS900 can activate, read, and relearn all known TPMS sensors, including Tesla OE sensors, and program the Autel 1-Sensor to replace 99 percent of the TPMS sensors on the road today. The TS900 is also compatible with the Autel BLE Sensor, preprogrammed for Tesla vehicles. The TS900 offers both basic all-systems diagnostics, such as the ability to read and clear codes and view Freeze Frame and Live Data, and advanced features, such as Active Tests and Special Functions. The TS900 can generate, print, and share Pre- and Post-Scans. The Android 11-based tablet features an extensive Service Menu providing direct access to more than 40 service functions, including Oil and Service Lights reset, Electronic Parking Brake reset, Brake Bleed, Air Bag reset, and Occupancy Seat calibration. The TS900 offers an advanced processor, 4GB operating memory, and 64 GB storage memory. The tablet comes with a one-year limited warranty.
Specifications:
| Recommended Use | Indoor |
| Operating System | Android™ 11 |
| Processor | RK3566 Quad-core Arm Cortex-A55 processor (1.8 GHz) |
| Memory | 4GB RAM & 64GB ROM |
| Display | 8-inch LCD screen with 1280 x 800 resolution |
| Rear Camera | 8MB |
| Connectivity |
|
| Sensors | Ambient light sensor for brightness auto changing |
| Audio Input/Output |
|
| Power and Battery |
|
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5 V/3 A |
| Power Consumption | Approx. 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temperature | 0 to 50°C((32 to 122°F) |
| Storage Temperature | -10 to 60°C (14 to 140°F) |
| Operating Humidity | 5% – 95% non-condensing |
| Dimensions (W x H x D) | 259.87 mm (10.23") x 168.98 mm (6.65") x 33.60 mm (1.32") |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD |
