The MaxiFlash VCI Kit, compatible with the MaxiSYS MS909 advanced diagnostic tablet, includes a bluetooth-enabled vehicle communication interface (VCI), a J2534-compliant pass-thru programming device. This VCI Kit also includes an Autel Main Cable V2.0, USB 2.0 cable, and AC/DC adapter. The MaxiFlash VCI supports CAN FD, 4 CAN Channels, D-PDU, IS 022900-1 and ISO 22900-2 protocols and is RP1210 compliant. The MaxiFlash VCI can be use with Windows computer with applicable OE subscription for vehicle module programming and when connected to the MaxiSYS MS909 tablet for compatible BMW and Mercedes vehicle module programming. Can also be paired with the Autel IM608 Programming Machine. Includes one-year Warranty.

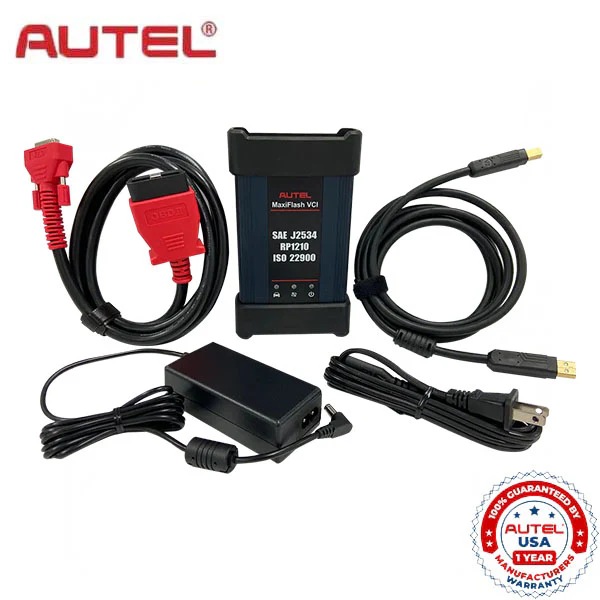

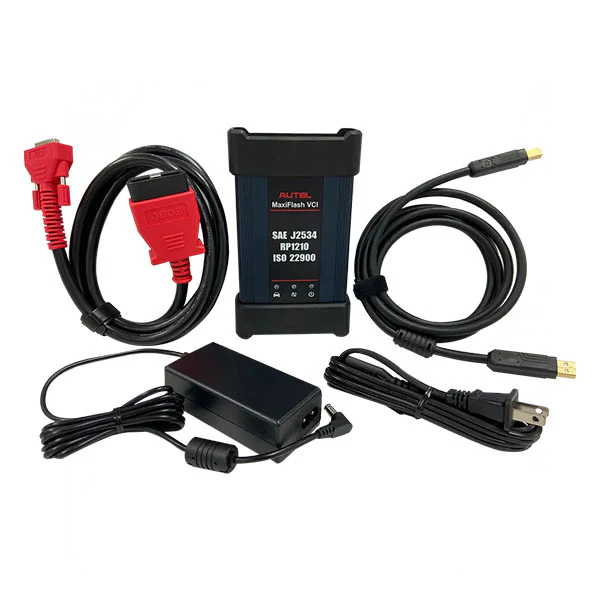

Included:

- Maxiflash VCI J2534 Pass-thru Programming Device
- Main Cable V2.0
- USB 2.0 Cable
- AC/DC Adapter

• Compatible with the MaxiSYS MS909 diagnostic tablet & IM608 Programming Machine

• Use with windows PC for vehicle module programming, J2534-1 & J2534-2 compliant
• Bluetooth-enabled communication interface

• Support CAN FD, 4 CAN Channels, and DoIP

• Supports D-PDU, IS O22900-1 & ISO 22900-2

• Program BMW & Mercedes from MaxiSYS MS909 Tablet

• RP1210 compliant

• Includes One-Year Limited Warranty

Communications	Bluetooth V2.1 + EDR USB 2.0 Wi-Fi 5G Ethernet
Wireless Frequency	5 GHz
Input Voltage Range	12V DC to 24 V DC
Supply Current	170mA at 12 V DC 100 mA at 24 V DC
Operating Temperature	0° C to 50° C
Storage Temperature	-20° C  to 60° C
Dimensions (L x W x H)	168.6 mm x 99.7 mm x 38 mm



Downloads:

• Quick Sheet

• Data Sheet
