BLD-8220.150

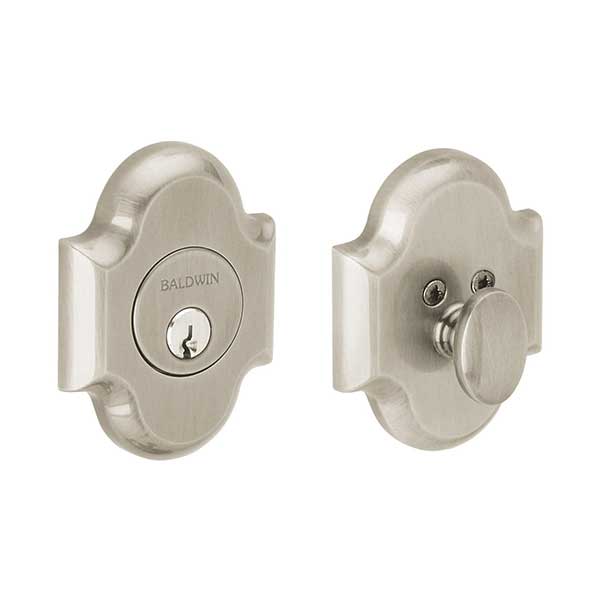

Baldwin 8252 Boulder Arched Single Cylinder Deadbolt

Keyless Entry Deadbolt (Single Cylinder): The beautiful Arched deadbolt had a classic style that calls up images of Spain and Italy. Keep your home safe without sacrificing style! The single cylinder function locks and unlocks on the inside with a push button, while the outside is locked and unlocked with a key.

Features

• Arched Deadbolt, Single Cylinder, 2-1/8" Door Prep
• Solid forged brass
• Low profile cylinder deadbolt for 2.125" door prep
• Features 0.5" low profile cylinder projection
• Deadbolt case is formed of heavy gauged steel for strength; most interior parts are made of solid brass
• Specially-designed reinforcing strike constructed of high-grade steel
• C-Keyway, 5-pin cylinder
• Accommodates 1.75" thick doors and 2.125" diameter cut outs. Deadbolt kits are available for 2" and 2.25" thick doors.
• ANSI/BHMA A 156.13 Operational & Security Grade I



Specifications

Configuration	Deadbolt
Cylinder	Single Cylinder
Keyway	Baldwin 5 Pin C Keyway
Handing	Reversible Left or Right
Finish	150 - Satin Nickel
Latch Faceplate	Square Corner
Height	3-9/16"
Width	2-5/8"
Backset	Adjustable 2-3/8" or 2-3/4"
Cross Bore	2-1/8"
Door Thickness	1-3/4"
BHMA Certification	Grade 1

Downloads

• Installation Instructions
• Exploded View
• Warranty Information

Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
