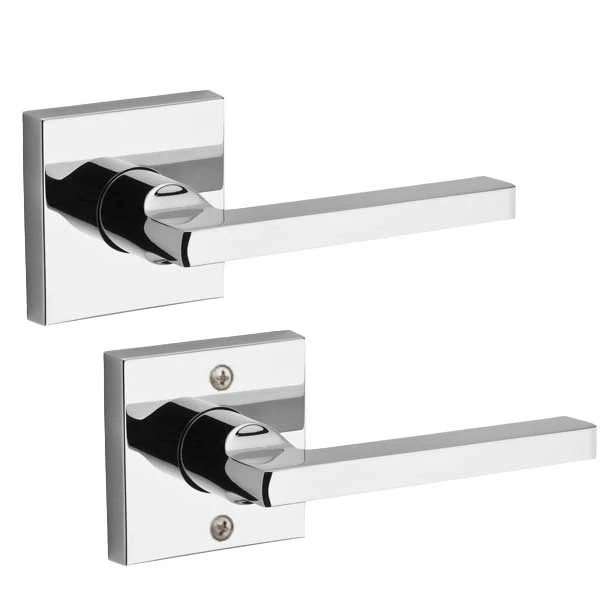

Baldwin Square Passage Door Lever Set with Contemporary Square Rosette

Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.

Features:

• Tested to exceed ANSI/BHMA Grade 2 security requirements

• Constructed of solid brass for durability and premium feel
• Includes round, square, and drive-in latch faceplates

• Easily installs on standard prep door from 1-3/8" to 2" thick

• Features easy-to-install spring-assisted chassis for optimal operational strength

• Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty

• Rosette has exposed screws on one side
•


Specifications

Configuration	Leverset
Function	Passage
Cylinder	No Cylinder
Finish	260- Polished Chrome
Handing	Left Hand
Backset	Adjustable 2-3/8" or 2-3/4"
Latch Faceplate	Drive-In, Round Corner, Square Corner
Cross Bore	2-1/8"
Edge Bore	1"
Door Thickness	1-3/4" to 2"
Handle Length	4.25" in.
Trim Diameter	2.5625 in. x 2.5625 in.
Concealed Screws	No
BHMA Certification	Grade 2

Downloads

• Drilling Instructions
• Installation Instructions
• Specifications

Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
