Baldwin PV.CON.CRR Contemporary Knob with Round Rose - Privacy Function
Privacy Function: Baldwin privacy knobs lock from the interior through a pin on the interior trim, with an emergency release hole on the exterior, making them ideal for bathrooms or bedrooms where the ability to lock the door is desired, but a keyed entry is unnecessary.
Features:
- Tested to exceed ANSI/BHMA Grade 2 security
- Solid forged brass construction built to last a lifetime
- Reversible handing for maximum versatility
- Includes all mounting hardware for quick and easy installation

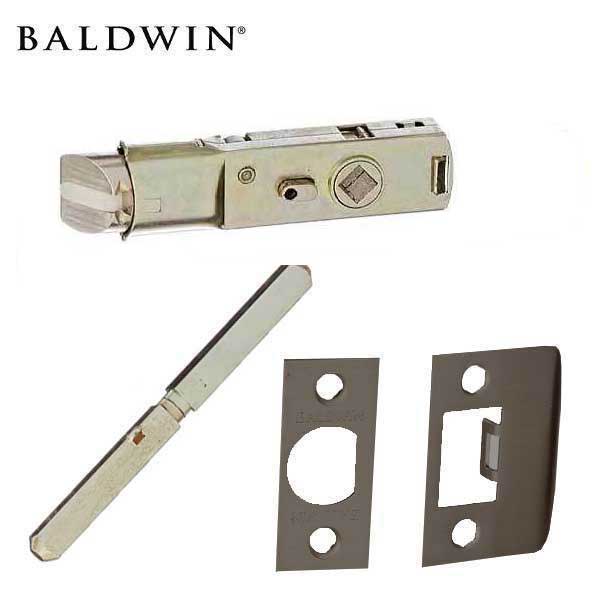

- Solid brass deadbolt latch with hardened steel roll pin for additional strength and security
- Interior comes in same finish as exterior; if split finish is desired, please contact customer service
- Accommodates door thickness 1-3/8" to 2-1/2"
Specifications
| Configuration |
Knobset |
| Function |
Privacy |
| Cylinder | No Cylinder |
| Handing | Reversible Left or Right |
| Finish | 190- Satin Black |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Knob Diameter | 2.34375 " |
| Cross Bore |
2-1/8" |
| Edge Bore | 1" |
| Door Thickness |
1-3/8" to 2-1/2" |
| Knob Diameter | 2-1/4" |
| Concealed Screws | No |
| BHMA Certification |
Grade 2 |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
