The adapter with the barracuda programmer allows solving all keys lost situations on Toyota Vehicles equipped with all currently known generations (Gen1 MCU11910, Gen2 MCU12xxx) of 128bit H chip immobilizer system (page1: 39, 59, 3A, 5a)
For all Markets (Europe, Asia, USA, Japan, etc.)
By creating a master key on the LKP04 Transponder chip without replacing or resetting the immobilizer Unit

During the process, car data is not modified in any way.

*Software Only -- Machine Sold Separately

Programming Requirements:

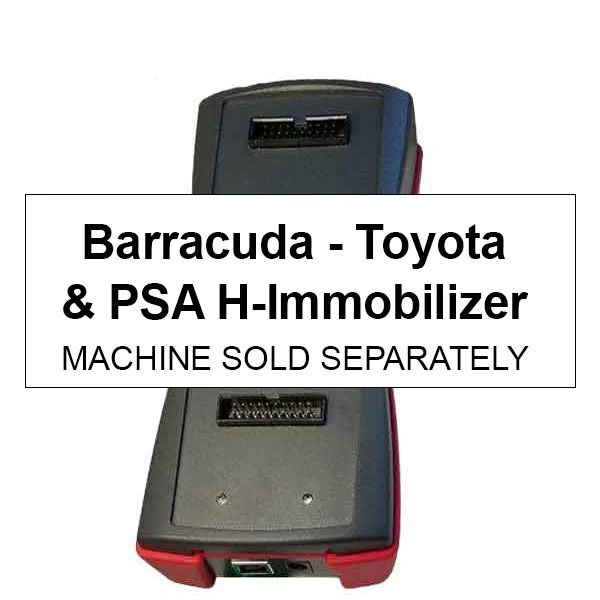

• Barracuda Programmer ABK-4400
• Barracuda Adapter H Immo ABK-4623
• Barracuda Activation H Immo ABK-4400-TOY-H-IMMO
• Tango Programmer ABK-2087
• LKP-04 Transponder chip ABK-4411
• Tango Toyota Maker ABK-2087-TOY
• Tango Toyota Image generator H ABK-2087-TOY-GENRT-H

Barracuda Toyota / Lexus / Subaru ID Code box / ESL reset system requirements:

• Barracuda key programmer ABK-4400
• Barracuda H-Immo adapter ABK-4623
• Barracuda ID Code & ESL reset activation

Supported Models:

BRAND	MODEL	FROM	TO	NOTE
SCORPIO	ALL MODELS
TOYOTA	ALL MODELS	2013	2019	CHECK SUPPORTED SYSTEMS



Downloads:

• Operating Procedure
