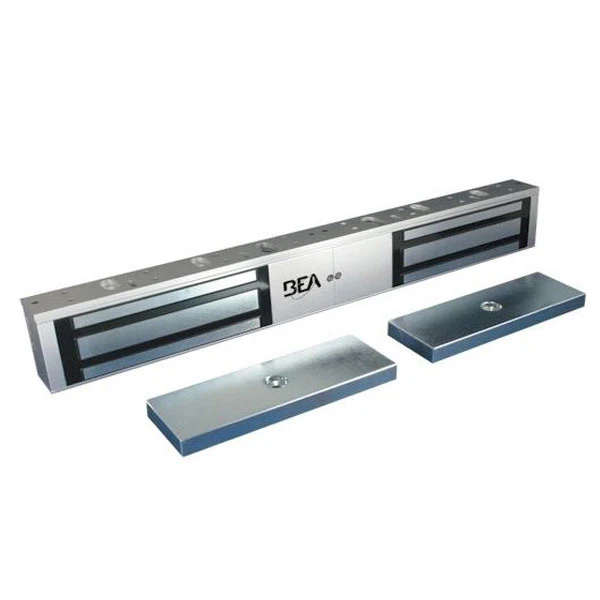

BEA - 10MAGLOCK5UL - Surface Mount Mag Lock - Double - 1200lb - 12/24 VDC - UL Listed
BEA’s UL LISTED MAGLOCKS provide a standards compliant locking solution for retail, healthcare, banking and other high security facilities that require UL Listed security products. Maglocks can be used on hollow metal, wood, aluminum, glass and composite door materials.
Features
- 1,200 Lb. holding force
- Adjustable zero to 90 second relock time delay
- Lock status sensor with visible LED
- Input voltage of 12 / 24 VDC, must be used with UL Listed power supply
- Door Status Sensor
Specifications:
| Door Configuration |
Double, Surface Mount |
| Holding Force |
1200 lb. |
| Input Voltage |
12 / 24 VDC (UL Listed power supply required) |
| Current Draw |
1 A @ 12 VDC 0.60 mA @ 24 VDC |
| Relay Power Factor | Dry Contacts: 3W (switching contact 0.25 amps max, switching voltage 30VDC max; resistive load) |
| Read Switch Power | 1 |
| Power Consumption | 500 mA @ 12 VDC 250 mA @ 24 VDC each |
| Dimensions |
20.94" x 2.87" x 1.58" |
| Relock Time Delay |
0s - 90s |
| Sensor | Lock Status Sensor, Door Status Sensor |
| Output Relay | Up to 1 A @ 24VDC |
| Operating Temperature | 32 – 120 F |
| Operating Humidity | 0 – 85% |
Downloads
$291.96
