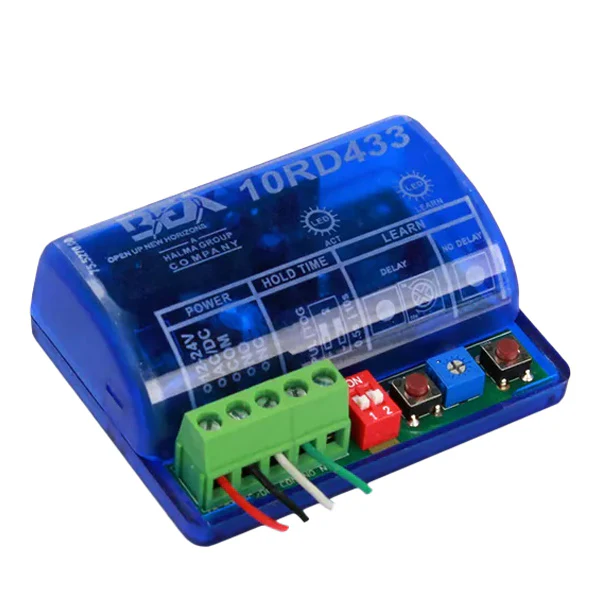

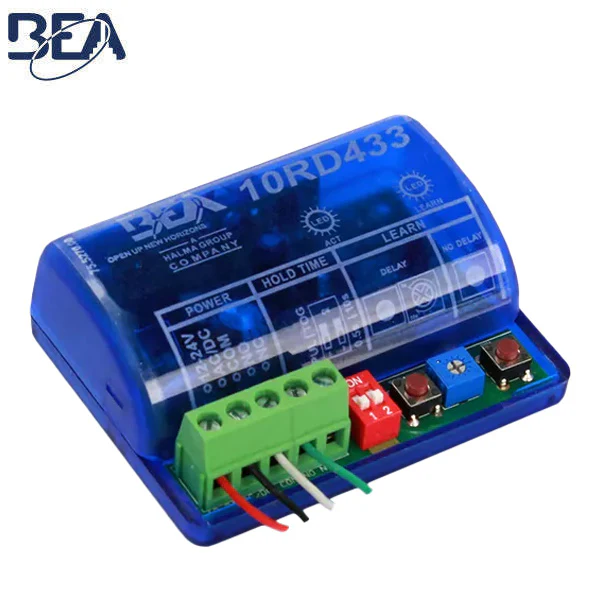

This is a  433 MHz wireless receiver for BEA Access control.

Features:

• Enhances Accessibility:
  It offers a means of activating automatic doors for those with limited mobility or disabilities.
• Pair With BEA Push Plates
  Reduce the installation time by eliminating the need to run wires from the push plate or use additional mounting hardware.
• Extended Hold Time
  Extended hold time receiver will hold the door open for as long as the button is pressed
• Learn Modes
  Delay and no-delay learn modes provide either instant or delayed activation for sequencing doors.

Specifications

Frequency	433 MHz
Radio Control Type	Digital
Emitted Radio Power	-28.7 dBm (transmitter)
Power Consumption	3mA (transmitter); 30mA (receiver)
Power (Hardware)	One 9-volt or 3-volt battery
Power (Handheld)	One 3-volt battery
Input Voltage	12 - 24 VAC / VDC (receiver)
Contact Rating	1.0 A @ 30 VDC 0.5 A @ 125 VAC 0.3 A @ 60 VDC
Operating Temperature	14 – 131 °F (-10 – 55 °C)
Capacity	100 programmed transmitters (per receiver)
Led Functionality	Receiver/Transmitter Learn: Red Relay Activity: Blue
Receiver Dimensions	2 1/8" (W) x 1" (H) x 2 3/4"(D)
Norm Conformity	CE, FCC, IC



Downloads:

• Product Cut Sheet
