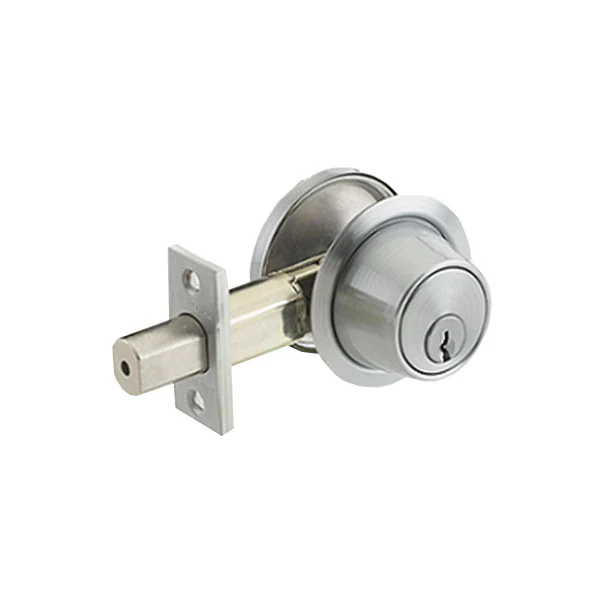

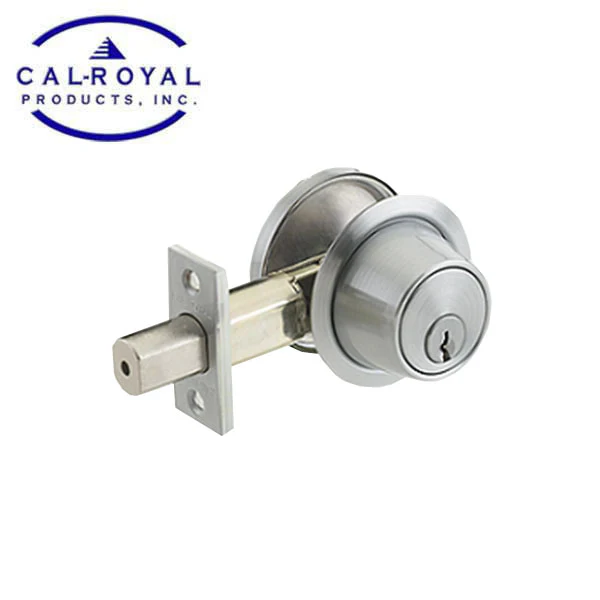

Cal-Royal - CB162 - Heavy Duty Double Cylinder Deadbolt - Satin Chrome - Grade 2
Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.
Features:
- BHMA Certified Lifetime Warranty, GRADE 2
- Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Standard 6-pin solid brass "C" keyway
- Sturdy, all steel latch case and mechanism
- Meets the Buy American Act
Specifications:
| Trim | Wrought Brass or Stainless Steel. |
| Function | Deadbolt thrown or retracted by key from either side. Boltautomatically deadlocks when fully thrown. |
| Door Ranges | Adjustable 1-3/8" (35mm) to 1-3/4" (45mm) door thickness. |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Deadbolt Faceplate | Standard 2-1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1-1/8" wide door preparations. |
| Bore Diameter | 1" for latch, 1-1/2" or 2-1/8" for lock housing. |
| Strike | 1-1/8" x 2-3/4" Square Corner. |
| Keyway |
Standard 6-pin solid brass "C" keyway |
Downloads:
$17.32
Original: $49.48
-65%Cal-Royal - CB162 - Heavy Duty Double Cylinder Deadbolt - Satin Chrome - Grade 2—
$49.48
$17.32Product Information
