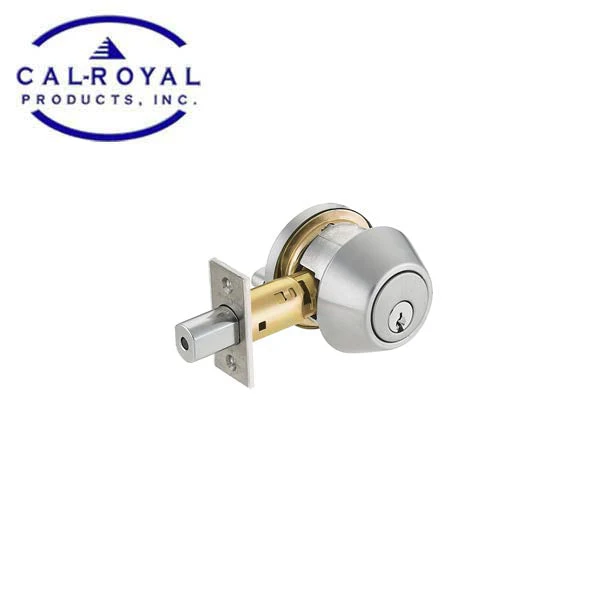

Cal-Royal - ULT360 - Single Cylinder Deadbolt - Optional Finish - Optional Function - Grade 2

Product image 1
1 / 2

Cal-Royal - ULT360 - Single Cylinder Deadbolt - Optional Finish - Optional Function - Grade 2



Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.


Features:
  • BHMA Certified Lifetime Warranty, GRADE 2
  • Conforms with ANSI A 156.2 Series 4000,
  • ADA (American Disability Act) Ergonomic Thumbturn
  • UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
  • Solid brass 6 pin “C” keyway cylinder, optional other keyways
  • One-piece steel housing for extra strength
  • Hurricane Approved Hardware. Florida Building Code FL13922
  • Meets the Buy American Act


Specifications:

Trim Wrought Brass or Stainless Steel.
Door Ranges Adjustable 1 ⅜” (40mm) to 2” (51mm) door thickness.
Backset UL Listed 3 Hour Fire Rating 2 ¾” latchbolt. 2 ⅜” optional.
Deadbolt Faceplate Standard 2 ¼” X 1 ⅛” for 2 ¾” backset. Optional 2 ¼” X 1” for 2 ⅜” backset.
Strike 1 ⅛” X 2 ¾” square corner. Extra security 1” throw bolt with ¼” free spinning anti-cut through pin. 2 pcs x 3” screws with wood frame reinforcer greatly strengthens door frames.
Bore Diameter 1” for latch, 2 ⅛” for lock housing.


Downloads:

Select Finish
Select Function
From $33.46
Cal-Royal - ULT360 - Single Cylinder Deadbolt - Optional Finish - Optional Function - Grade 2—
$33.46

Product Information

Shipping & Returns

Description



Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.


Features:
  • BHMA Certified Lifetime Warranty, GRADE 2
  • Conforms with ANSI A 156.2 Series 4000,
  • ADA (American Disability Act) Ergonomic Thumbturn
  • UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
  • Solid brass 6 pin “C” keyway cylinder, optional other keyways
  • One-piece steel housing for extra strength
  • Hurricane Approved Hardware. Florida Building Code FL13922
  • Meets the Buy American Act


Specifications:

Trim Wrought Brass or Stainless Steel.
Door Ranges Adjustable 1 ⅜” (40mm) to 2” (51mm) door thickness.
Backset UL Listed 3 Hour Fire Rating 2 ¾” latchbolt. 2 ⅜” optional.
Deadbolt Faceplate Standard 2 ¼” X 1 ⅛” for 2 ¾” backset. Optional 2 ¼” X 1” for 2 ⅜” backset.
Strike 1 ⅛” X 2 ¾” square corner. Extra security 1” throw bolt with ¼” free spinning anti-cut through pin. 2 pcs x 3” screws with wood frame reinforcer greatly strengthens door frames.
Bore Diameter 1” for latch, 2 ⅛” for lock housing.
