CodeLocks - CL50 - Mechanical Lock - Light Duty - Optional Backset - Mortise Latch - Silver Gray - Fire Rated - Grade 2

Product image 1
1 / 2

CodeLocks - CL50 - Mechanical Lock - Light Duty - Optional Backset - Mortise Latch - Silver Gray - Fire Rated - Grade 2

CDL-CL50-SG

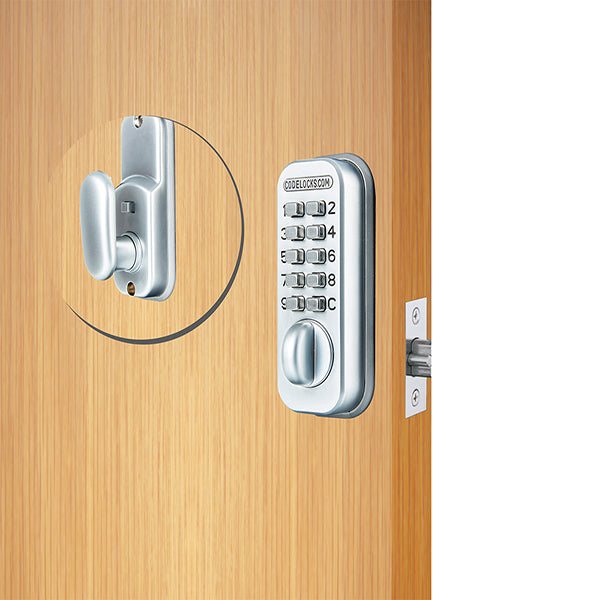

The CL50 is an easy-to-fit light duty mechanical push-button lock with tubular latch.

The CL50 is a mini mechanical lock, it’s compact size makes it suitable for low traffic, internal applications. The keyless lock provides immediate access with a 4-6 digit code, providing 500+ code combinations. The lock comes in a silver gray finish and installation is simple; drill one hole for the latch, one for the spindle and two holes for the fixing bolts. Control access to individual offices, store rooms, stationary cupboards, school arts and IT storage. The CL50 is extremely versatile.

Features

  • Simple convenient control
  • Easy to fit
  • Mortise Latch
  • Easy action internal lever
  • Hold open function allowing code free access (Passage Function)
  • Flat spring loaded spindle
  • Suitable for low traffic applications

Specifications

    Brand Codelocks
    Buttons 2 x 5
    Code Change Method Tumblers (Off Door)
    Codes Single code storage - 511 non sequential combinations available
    Door Thickness 1 3⁄8" - 2 3⁄8" (35mm - 60mm)
    Finish Silver Grey
    Handed Non-Handed - Locks will fit doors hung on the left or right
    Keypad 10 Individual stainless steel buttons
    Latch Type 2 3⁄4" or 2 3/8" Mortise Latch
    Lock Material Zinc Alloy
    Orientation Vertical
    Spindle Flat spring loaded spindle
    Suitable For Internal
    User Types Code
    Fire Rated 3-hour UL 10C
    Certifications Grade 2 ANSI A156.2 / A156.25, UL/ULC
