CDL-CL5000

The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code. Code Free Mode can also be programmed at the keypad using the Master Code

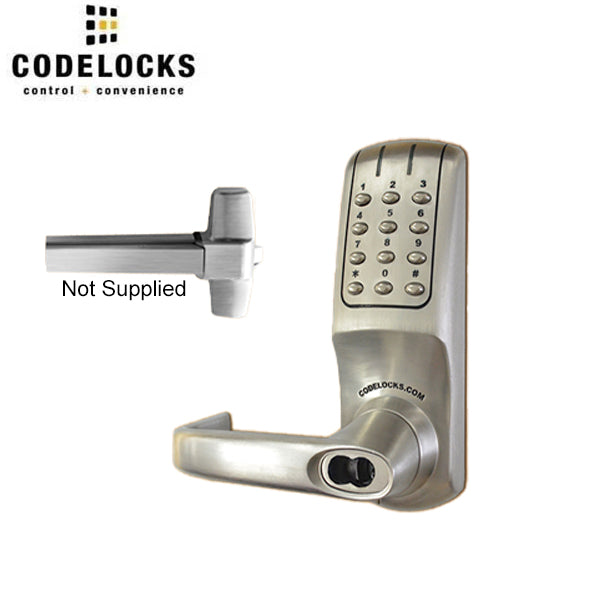

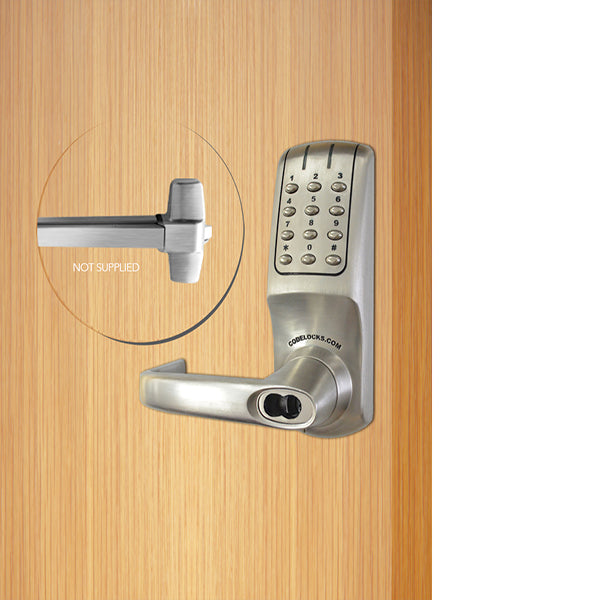

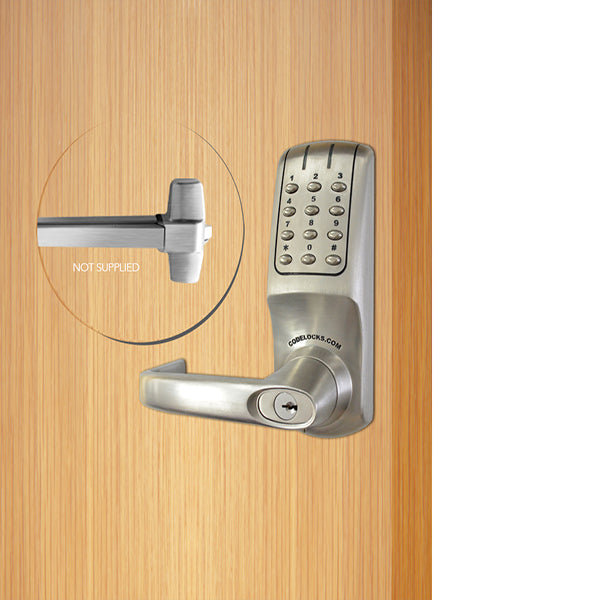

Panic Rim Exit Device NOT included.*

Features:

• Electronic panic access kit
• Fit with new or existing panic equipment
• Lever handle lock for doors hung on the left or right
• Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
• Tested to Grade 2 - ANSI - A156.2
• UL/ULC Fire Rating 3 hours



Specifications:

Brand	Code Locks
Buttons	3 x 4
Door Thickness	1 3⁄8" - 2 3⁄8" (35mm - 60mm)
Code Change Method	Tumblers (Off door)
Material	Zinc Alloy
Finish Color	Brushed Steel
Handed	Non-handed
Keypad	12 Stainless Steel Buttons
Spindle	Two part 5⁄16" (8mm) spring loaded spindle
Low Battery Warning	Red LED will flash on opening to indicate low battery
Operations	Up to 200,000 per set of 4 x AA batteries
Power	4 x AA batteries
Lock Material	Zinc Alloy
Orientation	Vertical
Fire Rated	UL/ULC Fire Rating 3 hours
Manufacturer Warranty	Limited Lifetime Warranty
