CodeLocks - CL500 Gate Box Kit - Mechanical Lock - Exit Trim with Panic Rim Exit Device Gate Box Kit - Optional Rim Size - Heavy Duty - Panic Access Kit - Stainless Steel

Product image 1
1 / 4

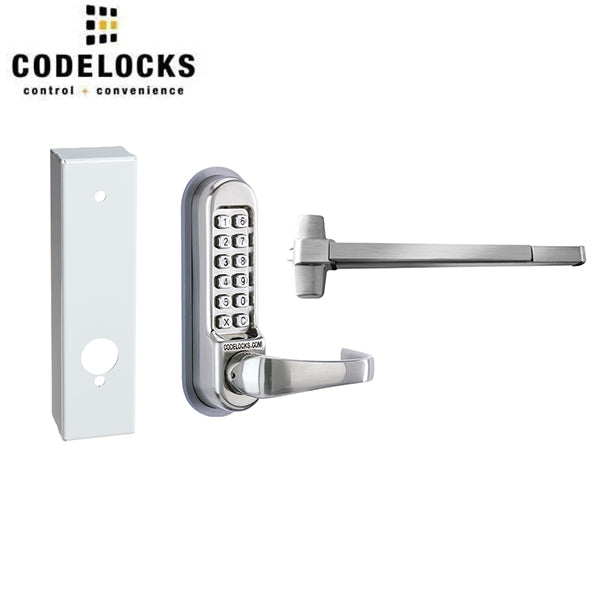

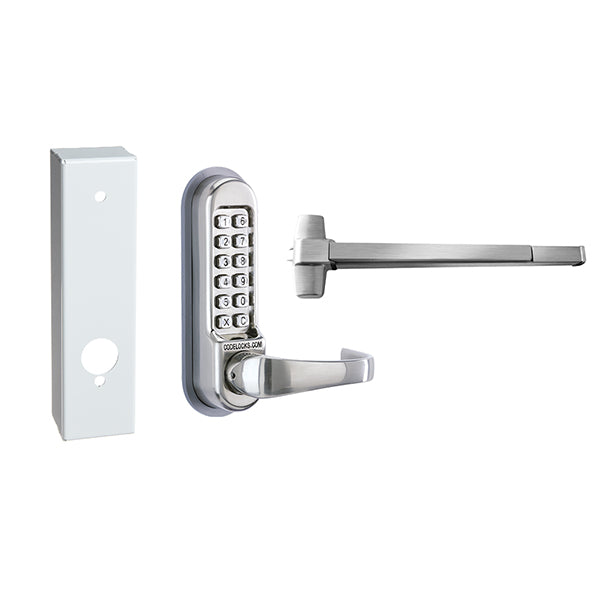

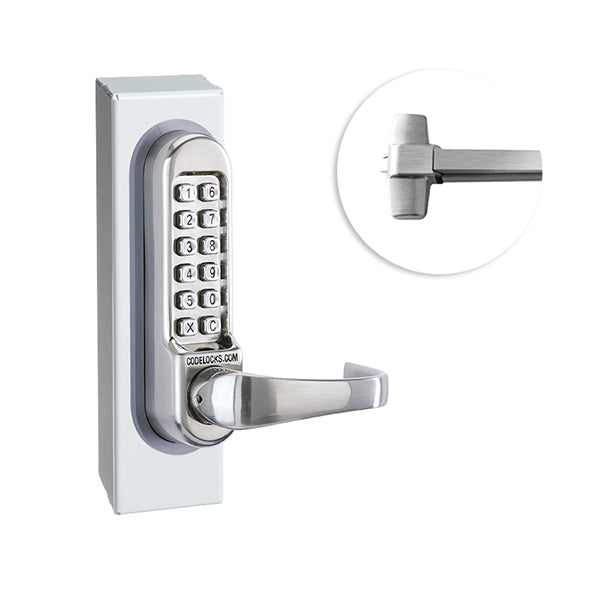

CodeLocks - CL500 Gate Box Kit - Mechanical Lock - Exit Trim with Panic Rim Exit Device Gate Box Kit - Optional Rim Size - Heavy Duty - Panic Access Kit - Stainless Steel

CDL-97425-36 / CDL-97425-48

Heavy duty mechanical locks with large full size lever handles, allowing use as the primary lock on doors. An extra long spindle is provided to work with most single point panic pads or bars. The outside lever will retract the latch freely until disabled.

Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential

Features:

  • Large full size lever handles with return to door
  • Panic Rim Device Included
  • Suitable for internal and external use
  • Tumbler alignment for easy code change
  • Large three coil lever return spring suitable for high traffic use
  • Neoprene seals included
  • Easy, effective gate and fence installation
  • Complete kits with all required components
  • 14-gauge weldable steel boxes with pre-drilled fixing holes
  • Supplied as raw steel, ready to paint
  • Adjustable strike bracket with U-bolt fastener

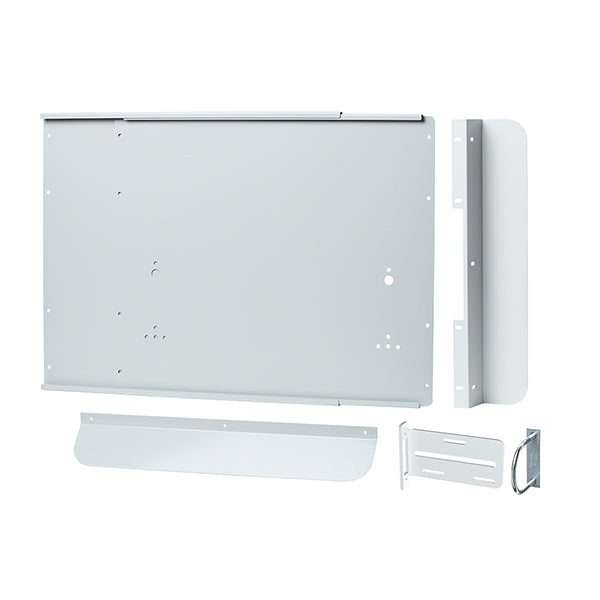

Gate Box Kit Components

  • CL500 Panic Access Kit
  • Codelocks installation, operating/programming instructions and fastening bolts
  • ANSI Grade 1 CL.ED Series Exit Device, available in two sizes, 36” and 48”
  • Adjustable Strike bracket with u-bolt fastener
  • Anti-Theft manipulation device
  • 24” tall latch protector
  • 24”, 2-piece panic shield adjustable to suit 30” - 54” wide gates



Specifications:

    Brand
    		 Code Locks
    Gate Box Dimensions 24" x 2" x 30" (60.96cm x 5.08cm x 76.2cm)
    Gate Box Dimensions 14-gauge steel
    Buttons
    		 2 x 6
    Panic Rim Device Optional 36" or 48"
    Door Thickness 1-3/4" 2-3/8"
    Code Change Method
    		 Tumblers (Off door)
    Codes
    		 Single code storage - 8,191 non-sequential combinations available
    Material Zinc Alloy
    Finish Color Stainless Steel
    Handed
    		 Non-handed
    Keypad
    		 12 Stainless Steel Buttons
    Lock Material Zinc Alloy
    Orientation Vertical
    Manufacturer Warranty Limited Lifetime Warranty





    Downloads:

    Select Rim Device Size
    From $680.83
    CodeLocks - CL500 Gate Box Kit - Mechanical Lock - Exit Trim with Panic Rim Exit Device Gate Box Kit - Optional Rim Size - Heavy Duty - Panic Access Kit - Stainless Steel—
    $680.83
