Command Access - Electrified Latch Retraction Kit - For Falcon 1690 / 1790 and First Choice 3600 / 3700 series - 2/18 Gauge - 24V +/- 10% VDC
Command Access - Electrified Latch Retraction Kit - For Falcon 1690 / 1790 and First Choice 3600 / 3700 series - 2/18 Gauge - 24V +/- 10% VDC

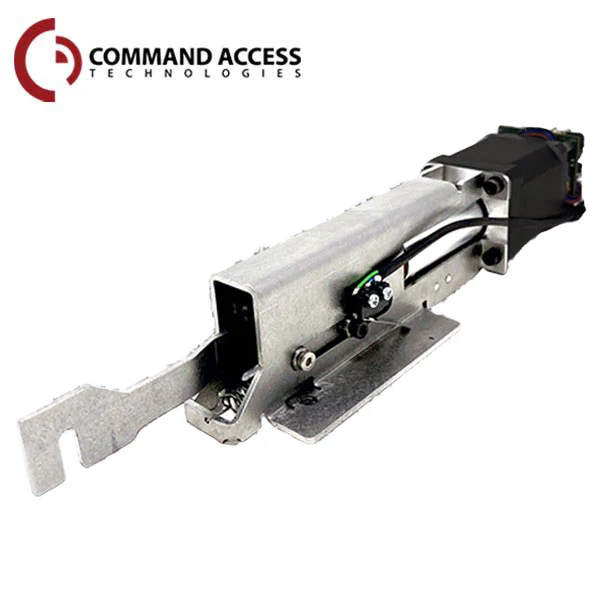

The Command Access MLRK1-FAL17 is a cost-effective and straightforward way to upgrade your Falcon 1690/1790, First Choice 3600/3700, & AHT 4/5 series device to motor-driven latch retraction in the field. MLRK1-FAL17 features a robust, straightforward field-installable motorized latch retraction kit for Falcon Dor-o-Matic 1690/1790 & First Choice 3600/3700 series exit devices. It utilizes a CAT-designed custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It uses our new 1 TOUCH PTS “Push to Set” technology, making post-installation adjustments a breeze.
Features:
- Next Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
- 1 Touch “PTS”: Quick and easy post installation adjustment
- Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position.
- Low Torque Mode - Now capable of pulling all devices, even tall vertical rod doors!
- Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel.
- 6’ cable with Robust Quick Molex Connect for MM5 module to 6' Power Lead to easily connect to power supply.
Specifications:
| Function: | Converts a mechanical Falcon 1690 / 1790 or First Choice 3600 / 3700 series device to an electrified latch pullback device. |
| Voltage Range: | 24 +/- 10% VDC |
| System Protection: | Unit shuts down when voltage exceeds 28VDC |
| Standard - Average Current Peak: | 900mA |
| Standard - Average Current Hold: | 200mA |
| PTS adjustment: | approx. 1/4” |
| Wire Run: | 300’ with 18ga wire |
| Built-in REX: | SPDT rated at .5A @ 24V Green (C) - Blue (NO) - Gray (NC) |
| Device Cutdown Details: | 36” - 1 1/4” / 48” - 1 1/4” |
| Certifications: | UL Listed 3-hour fire rating |
| Warranty: | 3-Year Manufacturer Warranty |
Downloads:
Original: $307.21
-65%$307.21
$107.52Product Information
