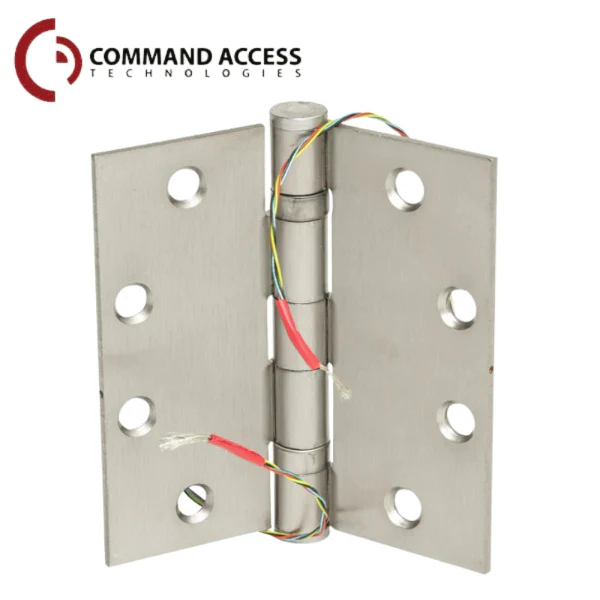

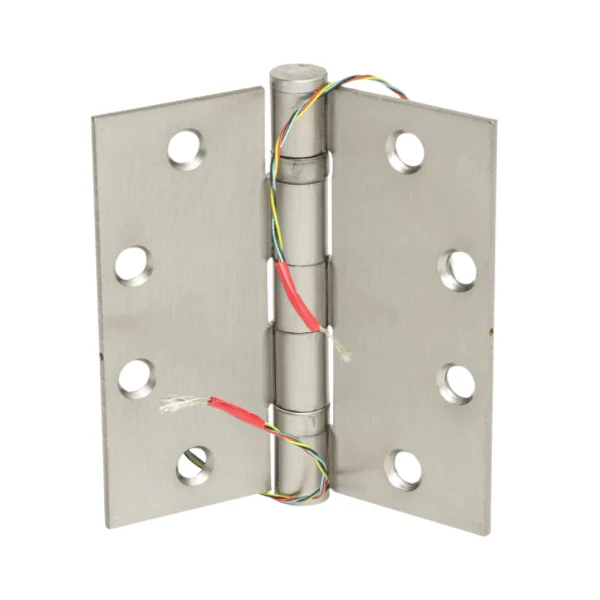

Command Access Energy Transfer Hinges (ETH) are the ideal way to pass low voltage power from the hinge jamb to the lockset and/or monitor the door position without having exposed wires. These hinges are commonly used with electric mortise & cylindrical locks, electric strikes (when on a pair of doors), electric exit trims, latch pullback devices, door-mounted card readers, and low-voltage door lights. We stock a vast variety of our Command Access UL-F rated hinges, along with a good stock of most major brands. With a wide array of sizes, types, and finishes, we stock the materials to meet your immediate needs.

Specifications:

Manufacturer	Command Access Technologies
Number of Wires	4
Wire Gauge	26
Commercial/Residential	Commercial
Corner Type	Square
Max Amps - Volts	1
Minimum Door Thickness	1-3/4"
Knuckle	5
Sub-Type	Electrified Hinges
Dimensions	4-1/2" x 4"
Bearing Type	Plain Bearing
Finish	Satin Chromium Plated 652/US26D



Downloads:

• Cut Sheet
