COMPX - C8055 - Disc Cam Lock 1-7/16in - Keyed Alike - Bright Nickel Finish

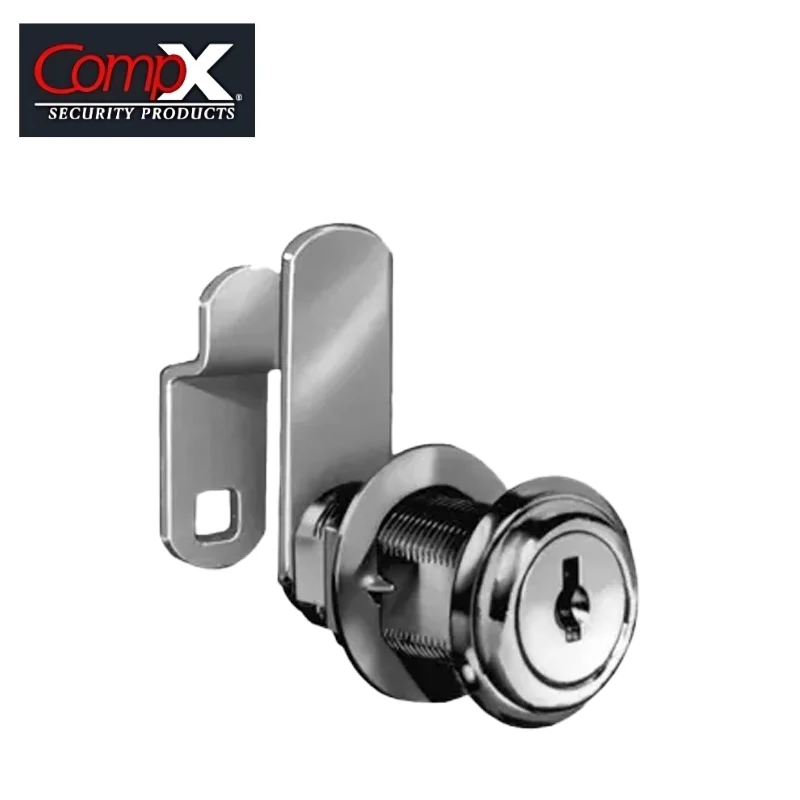

Product image 1
1 / 3

COMPX - C8055 - Disc Cam Lock 1-7/16in - Keyed Alike - Bright Nickel Finish

The COMPX® C8055-KAC415A-14A is a dependable disc tumbler cam lock engineered for secure access control in cabinets, drawers, and display cases. Designed to suit both lipped/overlay and flush mounting applications, this lock is built with precision and convenience in mind.

Features:

  • Versatile configuration: Supplied with both straight cam (for overlay) and formed cam (for flush), accommodating overlay constructions where the combined material thickness does not exceed the cylinder length.
  • Smooth operation: Features a 90° clockwise (CW) cam rotation. The key is removable in both the locked and unlocked positions, enhancing usability.
  • Complete mounting kit: Each unit includes two keys, a trim washer, a spur washer for wood installation, a mounting nut, and two cams. (A separate flat washer for metal may be ordered as an accessory.)



Attribute Specification
Cylinder Length 1-7/16 in
Maximum Material Thickness 1-1/8 in
Mounting Hole Size 3/4 in (Wood), 0.76" (Metal)
Keying Type Keyed-Alike (KA) — uses key blank D8785 (e.g., KA-415)
Finish Bright Nickel (14A)
Cam Turn 90° clockwise; key removable in both locked and unlocked positions
Included Hardware 2 keys, trim washer, spur washer (for wood), mounting nut, straight and formed cams
Cam Length 1-1/2" (Straight), 1-1/8" (Formed)
Cam Offset  11/32"
Key Code  C415A
$9.18
COMPX - C8055 - Disc Cam Lock 1-7/16in - Keyed Alike - Bright Nickel Finish—
$9.18

Product Information

Shipping & Returns

Description

The COMPX® C8055-KAC415A-14A is a dependable disc tumbler cam lock engineered for secure access control in cabinets, drawers, and display cases. Designed to suit both lipped/overlay and flush mounting applications, this lock is built with precision and convenience in mind.

Features:

  • Versatile configuration: Supplied with both straight cam (for overlay) and formed cam (for flush), accommodating overlay constructions where the combined material thickness does not exceed the cylinder length.
  • Smooth operation: Features a 90° clockwise (CW) cam rotation. The key is removable in both the locked and unlocked positions, enhancing usability.
  • Complete mounting kit: Each unit includes two keys, a trim washer, a spur washer for wood installation, a mounting nut, and two cams. (A separate flat washer for metal may be ordered as an accessory.)



Attribute Specification
Cylinder Length 1-7/16 in
Maximum Material Thickness 1-1/8 in
Mounting Hole Size 3/4 in (Wood), 0.76" (Metal)
Keying Type Keyed-Alike (KA) — uses key blank D8785 (e.g., KA-415)
Finish Bright Nickel (14A)
Cam Turn 90° clockwise; key removable in both locked and unlocked positions
Included Hardware 2 keys, trim washer, spur washer (for wood), mounting nut, straight and formed cams
Cam Length 1-1/2" (Straight), 1-1/8" (Formed)
Cam Offset  11/32"
Key Code  C415A
