Dahua / Accessories / Junction Box / Explosion-Protected / DH-ZAJ300

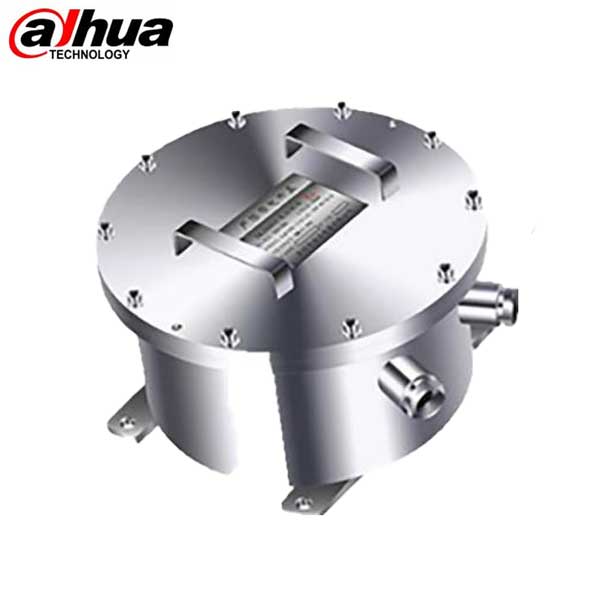

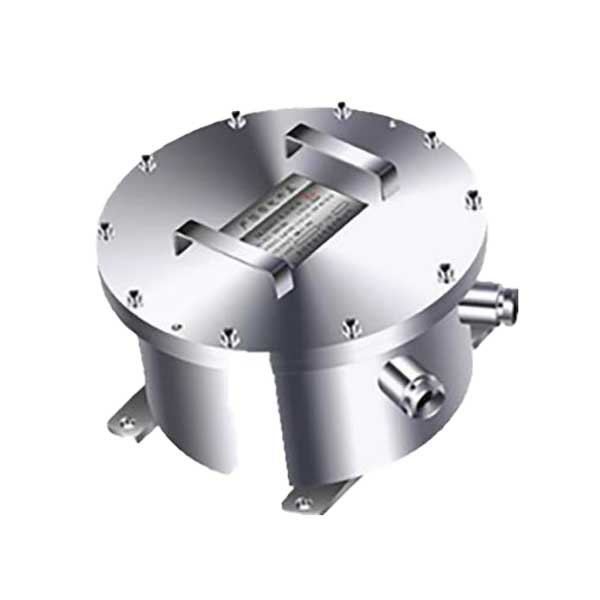

DH-ZAJ300
- 316L Stainless Steel Construction
- Six (6) Cable Ports, G-3/4-in. Cable Entry Standard
- IP68 Ingress Protection
- Designed for Extreme Temperature Environments
- For Use with Explosion-protected Cameras
- Call 1-800-878-6604 for Dealer Prices!
| Material | 316L Stainless Steel |
| Dimensions | |
| External | ø347.0 mm x 177.0 mm (ø13.66 in. x 6.70 in.) |
| Internal (L x W x H) | 234.0 mm x 234.0 mm x 119.0 mm (9.21 in. x 9.21 in. x 4.69 in.) |
| Pipe Thread | G-3/4 in |
| Weight | 14.70 kg (32.41 lb) |
| Operating Temperature | -40° C to 60° C (-40° F to 140° F) |
| Humidity | Less than 95% RH |
| Ingress Protection | IP68 |
Downloads
$557.54
Original: $1,592.98
-65%Dahua / Accessories / Junction Box / Explosion-Protected / DH-ZAJ300—
$1,592.98
$557.54Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
DH-ZAJ300
- 316L Stainless Steel Construction
- Six (6) Cable Ports, G-3/4-in. Cable Entry Standard
- IP68 Ingress Protection
- Designed for Extreme Temperature Environments
- For Use with Explosion-protected Cameras
- Call 1-800-878-6604 for Dealer Prices!
| Material | 316L Stainless Steel |
| Dimensions | |
| External | ø347.0 mm x 177.0 mm (ø13.66 in. x 6.70 in.) |
| Internal (L x W x H) | 234.0 mm x 234.0 mm x 119.0 mm (9.21 in. x 9.21 in. x 4.69 in.) |
| Pipe Thread | G-3/4 in |
| Weight | 14.70 kg (32.41 lb) |
| Operating Temperature | -40° C to 60° C (-40° F to 140° F) |
| Humidity | Less than 95% RH |
| Ingress Protection | IP68 |
