Dahua / Accessories / Replacement Lens / Varifocal / 12MP / 3.7-16mm / DH-PLZ20C0-D

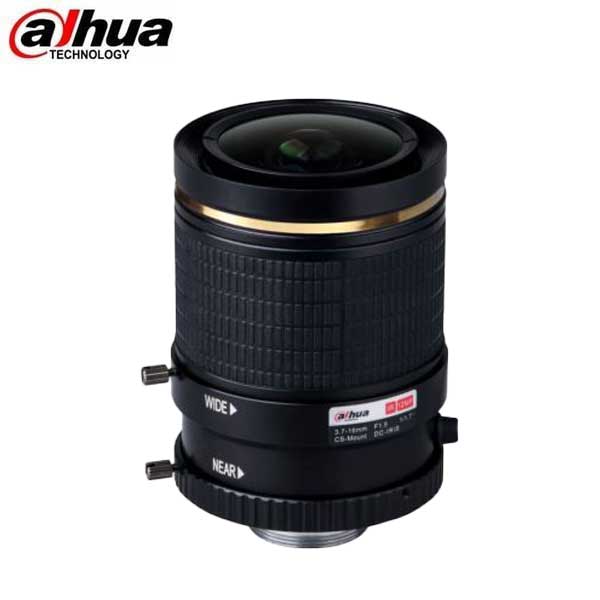

DH-PLZ20C0-D
- 12 MP 1/1.7” 3.7-16mm Vari-focal Lens
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
| Image Format | 1/1.7” |
| Focal Length | 3.7-16mm |
| Lens Pixel | 12MP |
| Aperture | F1.5 |
| Mount | CS |
| Field Angle (D*H*V) | W:145°(D)x109°(H)x79°(V)~T: 35.6°(D)x28.5°(H)x21.4°(V) |
| Lens Control | Focus: Manual Zoom: Manual Iris: DC-Iris |
| IR Correction | Yes |
| M.O.D | 0.5m (1.64ft) |
| Dimensions | ɸ54mm x 82.8mm (ɸ2.12” x 3.26”) |
| Weight | 0.36 kg (0.81 lb) |
| Load Bearing Capacity | 0.27kg (0.6lb) |
| Operating Temperature | -30℃~+70℃ (-22℉~+158℉) |
| Humidity | <90% RH |
| Certifications | CE (EN55022, EN55024, EN50130-4) FCC (ANSI C63.4, FCC Part 15 Subpart B) |
Downloads
$130.40
Original: $372.58
-65%Dahua / Accessories / Replacement Lens / Varifocal / 12MP / 3.7-16mm / DH-PLZ20C0-D—
$372.58
$130.40Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
DH-PLZ20C0-D
- 12 MP 1/1.7” 3.7-16mm Vari-focal Lens
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
| Image Format | 1/1.7” |
| Focal Length | 3.7-16mm |
| Lens Pixel | 12MP |
| Aperture | F1.5 |
| Mount | CS |
| Field Angle (D*H*V) | W:145°(D)x109°(H)x79°(V)~T: 35.6°(D)x28.5°(H)x21.4°(V) |
| Lens Control | Focus: Manual Zoom: Manual Iris: DC-Iris |
| IR Correction | Yes |
| M.O.D | 0.5m (1.64ft) |
| Dimensions | ɸ54mm x 82.8mm (ɸ2.12” x 3.26”) |
| Weight | 0.36 kg (0.81 lb) |
| Load Bearing Capacity | 0.27kg (0.6lb) |
| Operating Temperature | -30℃~+70℃ (-22℉~+158℉) |
| Humidity | <90% RH |
| Certifications | CE (EN55022, EN55024, EN50130-4) FCC (ANSI C63.4, FCC Part 15 Subpart B) |
Downloads
