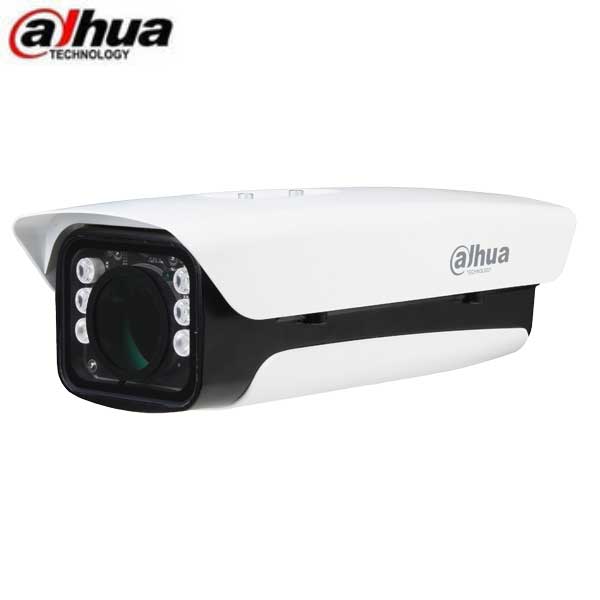

DH-PFH610V

• Aluminum Construction (casing)

• Optional Built-in IR Illumination and Heater

• Designed for Reliability and Aesthetics

• IP67 Ingress Protection and IK10 Vandal Resistance
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!



Technical Specifications

Material	Aluminum
Color	White
Ingress Protection	IP67
Impact Resistance	IK10
Power Supply	12 VDC or 24 VAC
Power Consumption	N/A
IR Distance	N/A
Outer Dimensions (W x H x D)	404.0 mm x 164.0 mm x 132.0 mm (15.91 in. x 6.46 in. x 5.20 in.)
Inner Dimensions (L x W x H)	215.0 mm x 90.0 mm x 83.0 mm (8.46 in. x 3.54 in. x 3.27 in.)
Weight	2.50 kg (5.51 lb)
Safety Certifications	UL 60950-1 CAN/CSA C22.2 No. 60950-1-07
Electromagnetic Compatibility (EMC)	FCC 47 CFR Part 15 Subpart B EN 55032:2015, EN 55024, EN61000-3-2, EN 61000-3-3, EN 50130-4 ICES-003 Issue 6, 2016
Operating Temperature	–30 °C to 60 °C (–22 °F to 140 °F)
Humidity	0% to 90% RH



Downloads

• Data Sheet
