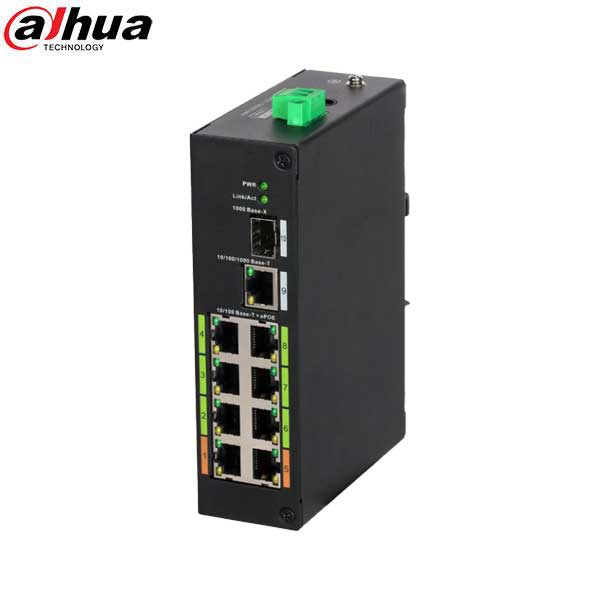

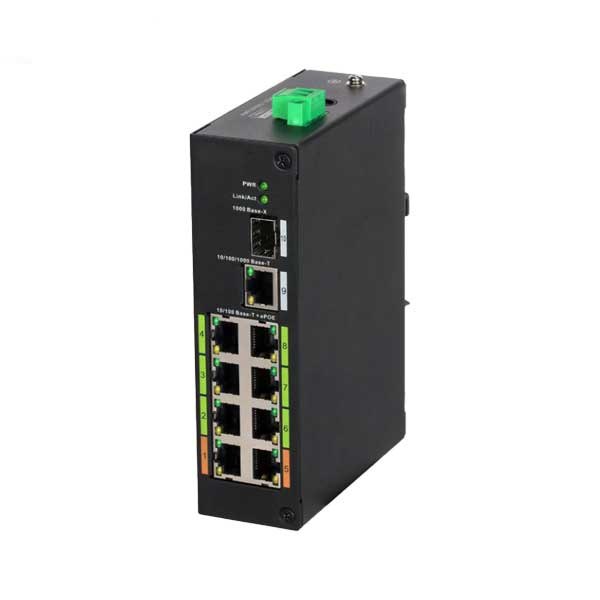

DH-LR2110-8ET-120

The DH-LR2110-8ET-120 is a 8-port ePoE Ethernet switch that supports PoE, PoE+, Hi-PoE and the PoC transmission standards. The switch is a component of Dahua's innovative Enhanced Power over Ethernet (ePoE) system that transmits power and data over long distances without the need for repeaters or multiple switches.

Features

• Layer 2 Network ePoE Switch
• Enhanced Power and Data Transmission Distances with ePoE
• Supports Long Distance ePoE Transmission, up to 800 m (2524 ft)
• MAC Auto Study and Aging, 8K MAC Address List Capacity
• Supports the IEEE802.3af and IEEE802.3at Standards and Hi-PoE
• Conforms to the IEEE802.3, IEEE802.3u, IEEE802.3ab/z and the
• IEEE802.3X Standards
• Indicator LEDs Display the Transmission Mode (IEEE, E100, E10)
• Designed for Extreme Temperature Environments
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!




Ethernet Ports
Uplink Ports	One (1) 1000 Base-X Port One (1) 10/100/1000 Base-T Port
Downstream Ports	Eight (8) 10/100 Base-T Ports (PoE Power Supply)
PoE Power Consumption	Hi-PoE: Ports 1 and 5 Consumption: up to 60 W per port IEEE802.3af, IEEE802.3at: Ports 2, 3, 4, 6, 7, 8 Consumption: up to 30 W per port Enhanced PoE (ePoE): Ports 1 to 8 Total PoE Budget: ≤ 120 W
PoE Protocol	PoE (IEEE802.3af), PoE+ (IEEE802.3at), Hi-PoE
Switching Capacity	8.8 Gbps
Packet Forwarding Rate	4.17 Mpps
Packet Buffer Memory	2.75 MB
MAC Table Size	8K
Flow Control	Enable by default
Power Requirements	48 VDC to 57 VDC Power Adapter
Dimensions	5.91 in. x 3.94 in. x 1.65 in.
Certifications	UL, FCC, CE
Warranty	New Limited Lifetime
