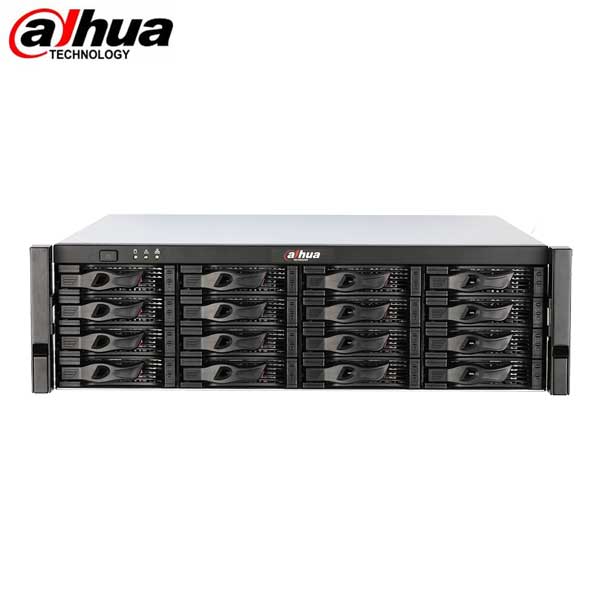

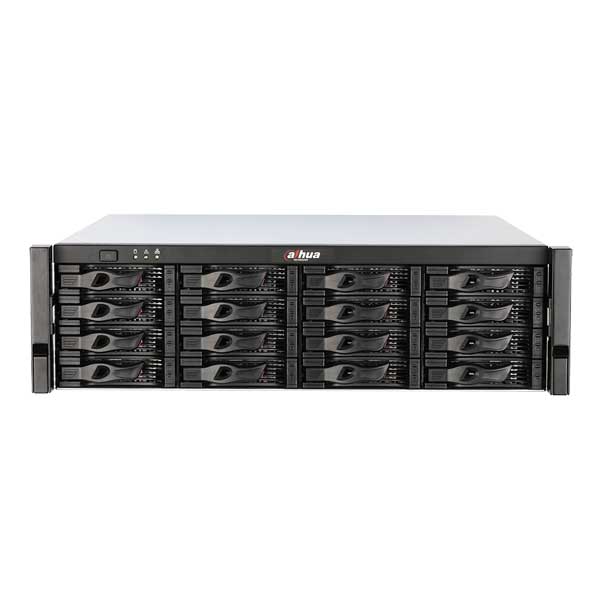

DH-EVS5016S-R

The EVS5016S-R Enterprise Video Storage device offers unparalleled storage technology. It is designed and developed to meet the needs of medium-range to high-end IP video surveillance applications; and supports 320 IP camera channels with  640 Mbps incoming/recording/forwarding bandwidth.

Combined with hot-swap power supplies, fans, and hard disk drives, the EVS offers Enterprise Class availability. This EVS is ideal for a wide range of applications including public safety, transportation, government institutions, hotels, shopping malls, city centers, and financial institutions that demand flexibility, reliability, and centralized storage management.

This EVS is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.4.

Features

• Intel Processor
• Max 320 IP Camera Inputs
• Max 640 Mbps Incoming/recording Bandwidth
• 16 HDDs, SATA, Hot-Swap
• Supports RAID 0/1/5/6/10/50/60/JBOD, Hotspare
• iSCSI and Mini SAS for Expanded Storage Space
• Support standard iSCSI Protocol Storage
• Modular & Cableless Design
• Redundant Power
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!



Specification

System
Main Processor	64-bit high-performance Intel processor
Controller	Single controller
Memory	4GB by default
Operating System	Embedded Linux
User Interface	Web
Working Mode
Video Stream Mode	320-channel (640Mbps) incoming and recording , 160-channel (320Mbps) forwarding, 32-channel (64Mbps) playback
IP SAN Mode	Storage bandwith ≤2.7Gbps Write-through: 320Mbps Write-back: 480Mbps
Storage
HDD Amount	16 HDDs, Up to 10TB capacity for each HDD SATA HDD composite connection
miniSAS	1 miniSAS ports, for storage extension
HDD Installation	Additional HDD bracket, HDD hot-swap, HDD online replacement
HDD Mode	Single, RAID 0/1/5/6/10/50/60 (Enterprise-level HDDs are recommended), JBOD, hotspare
Storage Management
Multi-screen Display	First Screen: 1/4/8/9/16/25 Second Screen: 1/4/8/9/16
On-screen Display	Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
Recording
IP Camera Input	320 Channel
Record Rate	640Mbps
Record Mode	Manual, Schedule (Regular, Continous), Motion Detection, Alarm
Record Interval	1 ~ 120 min(default 60 min) Pre-record 1 ~ 30 sec, Post-record 10 ~ 300 sec. I frame storage by period.
Auxiliary Interface
USB	1 USB 3.0
Multiplex Interface	1 USB 2.0 & eSATA multiplex interface
RS232	1 Port, for PC communication and Keyboard
Network
Interface	2 data RJ-45 ports (10/100/1000Mbps)
Network Mode	Multi-address, Fault-tolerance, Load balance, Link aggregation
Network Function	HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTP, RTCP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, iSCSI, SMB, NFS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 2.4, CGI Conformant
Electrical
Power Supply	AC100V ~ 240V, 47 ~ 63 Hz，1 + 1 Redundant power
Power Consumption	< 200W (With HDD)
Environmental
Working Conditions	0°C ~ +40°C (+32°F ~ +104°F), 10 % ~ 80% RH
Storage Conditions	-20°C ~ +70°C (-4°F ~ +158°F), 5% ~ 90% RH
Working Altitude	-60m ~ 3000m
Construction
Chassis	1.2mm extra-thickness hot-dip galvanized steel. High accuracy aluminum alloy slider. Self-developed patent removable HDD bracket.
Dimensions (W x D x H)	3U, 484.6mm x 473.6mm x 133.2mm (19.1" x 18.6" x 5.2")
Net Weight	11kg (24.3 lb) (without HDD)
Gross Weight	16kg (35.3 lb)
Installation	Standard 19-inch rack installation
Certifications
CE	EN55022, EN55024, EN50130-4, EN60950-1
FCC	Part 15 Subpart B, ANSI C63.4-2009
UL	UL 60950-1 and CAN/CSA C22.2 No.60950-1

Downloads:

• Data Sheet



Functions:

Modular Design
Brand new design for HDD carrier, ensures good cooling, stability and safety for hard disks.

Storage Extension Capacity
Local extension, connect to ESS extension storage by mini SAS interface. Extension storage support redundant power and RAID.

RAID 0/1/5/6/10/50/60
Offering a balance between storage performance, storage capacity, and data integrity, the NVR features fruitfull RAID 0/1/5/6/10/50/60 for faster and safer recording.

N+M Hot Standby
The highly reliable redundancy N+M Hot Standby design provides a secure, failover technique ensuring immediate backup. In the event of a system failure, the slave instantly takes over the master ensuring no data is lost.

ANR (Automatic Network Replenishment Technology)
Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to NVR and then recorded in it.
