DH-PSDW81642M-A360

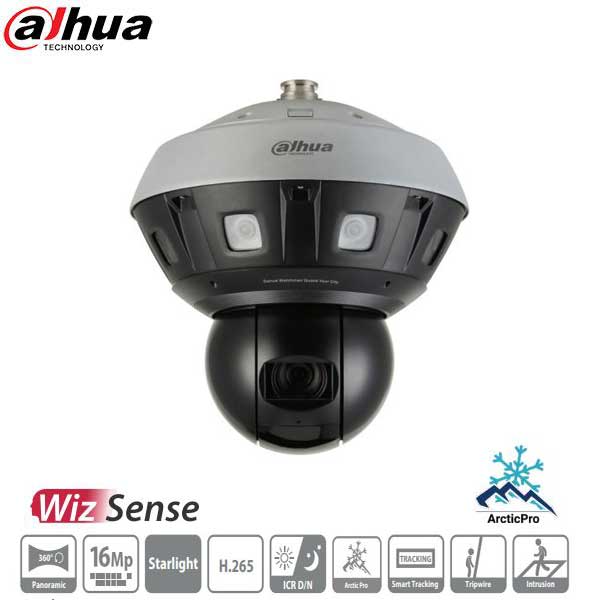

The Dahua Panoramic Multi-sensor plus PTZ camera combines eight (8) 2 MP sensors working in tandem to create a comprehensive 360° view, and a high-speed PTZ camera to focus on a specific area of the scene. With its all-in-one design, the camera provides a 360° panorama and provides region of interest details at the same time. The camera offers the Intelligent Video System (IVS), a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for tripwire violations and intrusion detection, and Smart Tracking technology that integrates the width of the panoramic scene with the tracking capability of the PTZ camera. The Multi-sensor plus PTZ camera can replace multiple single-sensor cameras providing a higher return on investment.

Features

• Panoramic Camera: Eight (8) 1/1.8-in. 2 MP Progressive-scan CMOS Imagers for a 360° Panoramic View
• PTZ Camera: One (1) 1/1.8-in 4 MP Progressive-scan CMOS Imager
• Triple-stream Encoding
• 8192 x 1800 at 30 fps (Panoramic) plus 2560 x 1440 at 30 fps (PTZ)
• Smart H.265+ and Smart H.264+ Dual Codecs
• Starlight Technology for Ultra-low Light Sensitivity
• ArcticPro Series Camera - Operational down to –40° C (–40° F)
• IP66 Ingress Protection
• Zoom Priority for Optimal IR Coverage at Any Zoom Level
• Intelligent Video System (IVS) with Smart Track
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!



Technical Specification

Panoramic Camera
Image Sensor	Eight (8) 1/1.8-in. 2 MP CMOS Sensors
Effective Pixels	8192(H) x 1800(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination	Color: 0.01 lux at F2.0
Panoramic Lens
Lens Type	Fixed
Mount Type	M12
Focal Length	5 mm
Maximum Aperture	F2.0
Angle of View	Horizontal: 360° Vertical: 84°
Close Focus Distance	1.20 m (3.94 ft)
PTZ Camera
Image Sensor	One (1) 1/1.8-in. 4 MP CMOS Sensor
Effective Pixels	2560(H) x 1440(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto, Manual: 1/3 s to 1/100,000 s
Minimum Illumination	Color: 0.008 lux at F1.3 (1/3 s, 30 IRE)
IR Distance	Up to 400.0 m (1312.34 ft)
IR On/Off Control	Auto, Manual
IR LEDs	Seven (7)
PTZ Lens
Lens Type	Electronic Zoom
Mount Type	Core Interface
Focal Length	5.6 mm to 223 mm
Max. Aperture	F1.3
Angle of View	Horizontal: 61° to 2° Vertical: 36° to 1° Diagonal: 68° to 3°
Optical Zoom	40x
Focus Control	Motorized
Close Focus Distance	0.50 m (1.64 ft)
DORI¹ Distance
Panoramic Camera - Detect	53.30 m (174.87 ft)
Panoramic Camera - Observe	21.30 m (69.88 ft)
Panoramic Camera - Recognize	10.70 m (35.10 ft)
Panoramic Camera - Identify	5.30 m (17.39 ft)
PTZ Camera  Telephoto - Detect	2873.10 m (9426.18 ft)
PTZ Camera Telephoto - Observe	1149.20 m (3770.34 ft)
PTZ Camera Telephoto - Recognize	574.60 m (1885.17 ft)
PTZ Camera Telephoto - Identify	287.30 m (942.59 ft)
PTZ
Pan/Tilt Range	Pan: 0˚ to 360˚, endless Tilt: -20˚ to 90˚ Auto flip: 180˚
Manual Speed Control	Pan: 0.1° /s to 240° /s Tilt: 0.1° /s to 120° /s
Presets	300
PTZ Mode	5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup	Human-oriented Focal Length and Speed Adaptation
Power-up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
Protocol	DH-SD, Pelco-P/D (Auto recognition)
Video
Compression	Smart H.265+, H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG
Streaming Capability	Three (3) Streams
Output Channels²	Two (2) Channels: • One (1) Channel for Stitched Panoramic Video • One (1) Channel for PTZ Video
Resolution - Panoramic Camera	8192 x 1800, 7680 x 1680, 5760 x 1264, 4800 x 3840, 4096 x 900, 3840 x 832, 3200 x 2560, 2560 x 560, 2048 x 452, 1600 x 1280
Resolution - PTZ Camera	4 MP (2560 x 1440), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
Frame Rate - Main Stream	Panoramic Camera: 8192 x 1800 at 30 fps PTZ Camera: 4 MP at 30 fps
Frame Rate - Sub Stream 1	Panoramic Camera: 3840 x 832 at 30 fps PTZ Camera: D1 or CIF at 30 fps
Frame Rate - Sub Stream 2	Panoramic Camera: 4800 x 3480 at 30 fps PTZ Camera: 1080p, 1.3 MP, or 720p at 30 fps
Bit Rate Control	CBR, VBR
Bit Rate - Panoramic	H.265: 256 Kbps to 26216 Kbps H.264: 512 Kbps to 42995 Kbps
Bit Rate - PTZ	H.265: 110 Kbps to 9216 Kbps H.264: 184 Kbps to 15104 Kbps
Day/Night	Auto (ICR), Color, B/W
BLC Mode	BLC, HLC, WDR
Dynamic Range - Panoramic	True WDR (120 dB)
Dynamic Range - PTZ	Digital WDR
White Balance - Panoramic	Auto, Natural, Street Lamp, Outdoor, Manual, Regional
White Balance - PTZ	Auto, Indoor, Outdoor, Manual, Sodium Lamp, Natural, Street Lamp
Gain Control	Auto, Manual, Aperture Priority, Gain Priority, Shutter Priority
Noise Reduction	3D DNR
Motion Detection	Off, On
Region of Interest	Off, On (4 Zone)
Defog	Support, PTZ camera only
Digital Zoom	16x, PTZ camera only
Privacy Masking - Panoramic	Off, On (4 Area, Rectangle)
Privacy Masking - PTZ	Off, On (8 Areas, Rectangle)
Audio
Compression	G.711a, G.711Mu, G.726
Network
Ethernet	One (1) RJ-45 Port (10/100/1000 Base-T)
Protocol	HTTP, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
Interoperability	ONVIF Profile G, CGI
Streaming Method	Unicast / Multicast
Maximum User Access	20 Users
Edge Storage	Network Attached Storage (NAS) FTP One (1) Micro SD Card slot, maximum 512 GB (for panoramic camera only)
Web Viewer	IE
Management Software	Smart PSS, DSS Express, DSS Express S, DSS Pro
Interface
Video	One (1) Port, CVBS BNC for PTZ camera only
Audio	Input: Two (2) Channels Output: Two (2) Channels
RS485	One (1) Port (Bit Rate: 1200 bps to 115200 bps), for PTZ control
Alarm - Input	Seven (7) Channels (3 VDC to 5 VDC, 5 mA)
Alarm - Output	Three (3) Channels (30 VDC, 1 A; 50 VAC, 0.5 A)
Electrical
Power Supply	36 VDC
Power Consumption	< 84.4 W
Construction
Casing	Metal and Plastic
Dimensions	383.0 mm x 389.80 mm (15.08 in. x 15.35 in.)
Certifications	UL, CAN/CSA, FCC CFR, ANSI, IP66
Manufacturer's Warranty	5 Years
