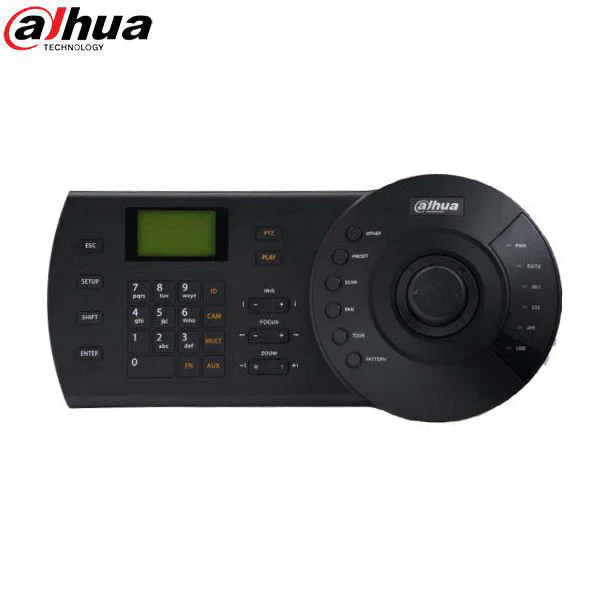

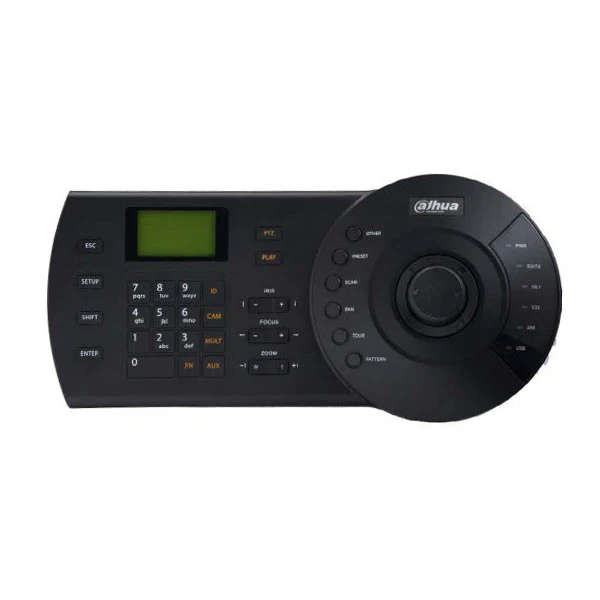

DH-NKB1000

Features

• Control High Speed Domes, DVRs and Network Video Servers
• Three-dimensional Joystick Control for PTZ Functions
• Preset Position, Auto Scan, Auto Pan, Auto Tour and Pattern Control
• Support for Auxiliary Functions
• On-screen Menu
• Supports SmartPSS (via USB connection)
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!



Technical Specifications

System
Keyboard Key Panel	Electromechanical
Joystick	Three-axis Vector-solving Twisting Function Return to Center
Display	LCD, 75.20 mm x 33.85 mm (2.96 in. x 1.33 in.)
Interface
Keyboard Connector	RJ45 RS232 RS485 RS422 USB
Keyboard Communication	Direct Mode, Network Mode
Direct Mode	Interface: RS232/RS485 DVR Protocol: DH2 PTZ Protocol: DH-SD/Pelc-D/Pelco-P/Pelco-D1/Pelco-P1
Network Mode	Interface: RJ45 DVR/Network PTZ: IP Address/Port/Protocol
Electrical
Power Supply	Power Adapter Input: 100 VAC to 240 VAC, 50/60 Hz Output: 12 VDC, 1000 mA
Consumption	5 W
Construction
Dimensions	330.0 mm x 160.0 mm x 37.50 mm (12.99 in. x 6.30 in. x 1.48 in.) Height with Joystick: 100 mm (3.94 in.)
