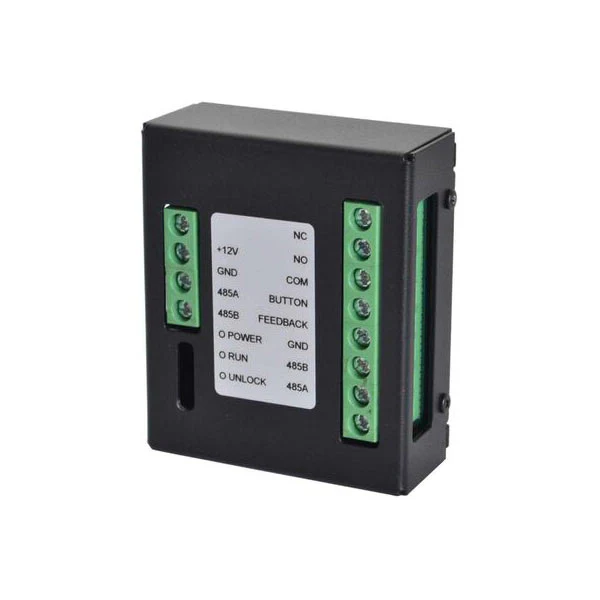

DH-DEE1010B

The Dahua DH-DEE1010B Video Intercom Extension Module is an extension module that enables the second lock function on Dahua's Video Intercom product line. Each Outdoor Station on Dahua's product line has an RS485 connection that acts as a second lock for a secondary door. By wiring the DEE1010B, you will be able to control the second lock via our Indoor Station or any of their software that controls their Video Intercom product line (i.e. DMSS, DSS Client). Security Portals or Mantraps can be setup using our VTO's with a DEE1010B for a second lock.

Features

• Decent appearance
• Easy connection
• Access control function extension
• Lock NO Output
• Lock NC Output
• Door Open Button
• Door Status Detection
• Become a registered dealer of Dahua
• Call 1-800-878-6604 for Dealer Prices!



Specifications

Access Control
Controls	• Lock NO Output • Lock NC Output • Door Open Button • Door Status Detection
Input	Card Swipe (card reader and unlock button required)

Electrical and Environmental
Power Supply	12 VDC, ±10%
Power Consumption	Standby: ≤ 0.5 W Working: ≤ 1 W
Operating Temperature	–10° C to +60° C (14° F to +140° F), 10% to 90% Relative Humidity

Construction
Dimensions (L x W x H)	58.0 mm x 51.0 mm x 24.50 mm (2.28 in. x 2.0 in. x 0.96 in.)
Net Weight	0.56 kg (1.23 lb)





Downloads

Data Sheet
User Manual
