Detex - V40-EE-CD - Delayed Egress Rim Exit Device - 36" - 24VDC Power Supply - Cylinder Dogging - Satin Aluminum - 10 Year Warranty

Product image 1
1 / 2

Detex - V40-EE-CD - Delayed Egress Rim Exit Device - 36" - 24VDC Power Supply - Cylinder Dogging - Satin Aluminum - 10 Year Warranty

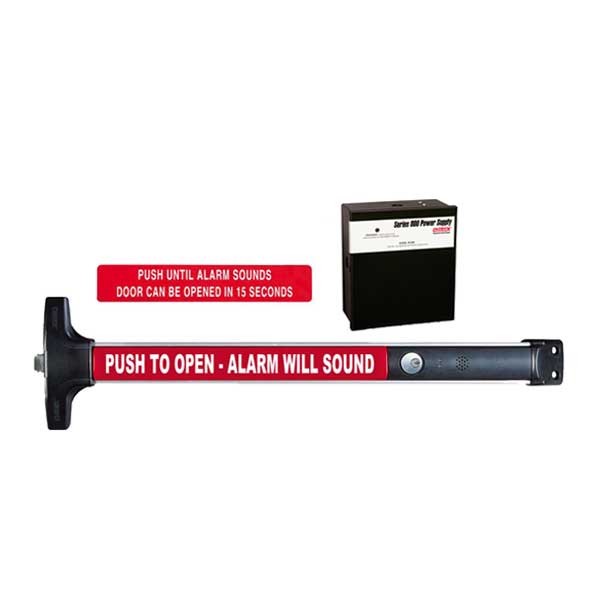

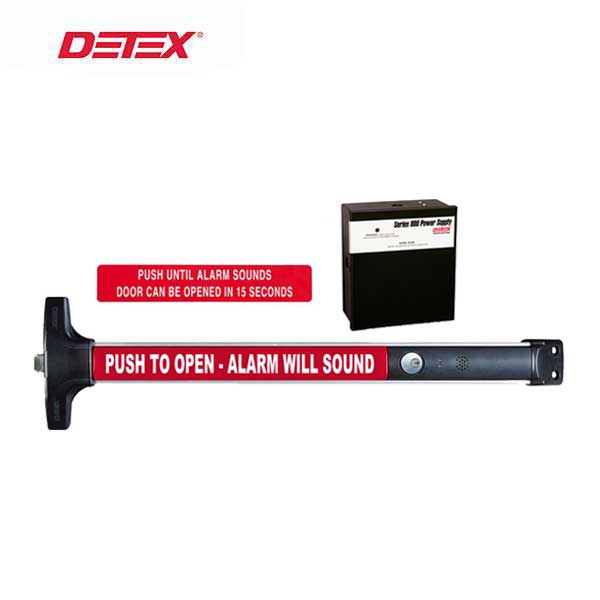

The Detex V40-EE-CD Delayed Egress Rim Exit Device The EE, designed for primary and secondary exits, provides a secure 15-second delay and a 100 decibel alarm when someone attempts to exit. This 15-second delay allows management time to respond before someone exits and the alarm deters the exit from occurring. Per life safety requirements, the EE must be provided with a fire alarm input, thus providing a system override during a fire emergency. The EE provides security while meeting all life safety concerns, offering an exceptional value.

Features

  • Detex V40 EE CD, Delayed Egress Rim Exit Device
  • Fire alarm input can be connected at power supply
  • Non-handed, field sizeable
  • 36 – Fits 36″ Door Width
  • Powered by a 24VDC filtered and regulated power supply
  • 9V battery provides alarm function only in case of power failure
  • Fasteners: Machine and Self-Drilling Screws
  • 1/8 turn Cylinder Dogging (CD) Standard
  • Tamper resistant housing
  • Angled end cap deflects damage away from device
  • Visual and audible arming indicators
  • 100+ Decibel alarm
  • 10 Year Mechanical/3 Year Electrical – Limited Manufacturer’s Warranty


      Specifications

      Length 32-7/8"
      Door Width 36"
      Door Thickness 1-3/4" - 2-1/4"
      Single Door Stile Fits 3-1/2” minimum stile doors with 99 surface strike
      Power Constant 24VDC of filtered and regulated voltage at a rated load of 1A, 9V battery provides alarm function only in case of power failure
      Dogging Single mortise 1-1/8″ cylinder (sold separately) provides arming and dogging – 1/8 turn cylinder dogging
      Bolt Stainless steel, 3/4" deadlocking Pullman-type latch bolt
      Alarm 100+ Decibels
      arming 15 second arming. Silent arming (3 chirps when arming)
      Finish 628 (Satin Aluminum)
      Warranty 10 Year Mechanical 3 Year Electrical Limited Manufacturer Warranty

      Installation:
