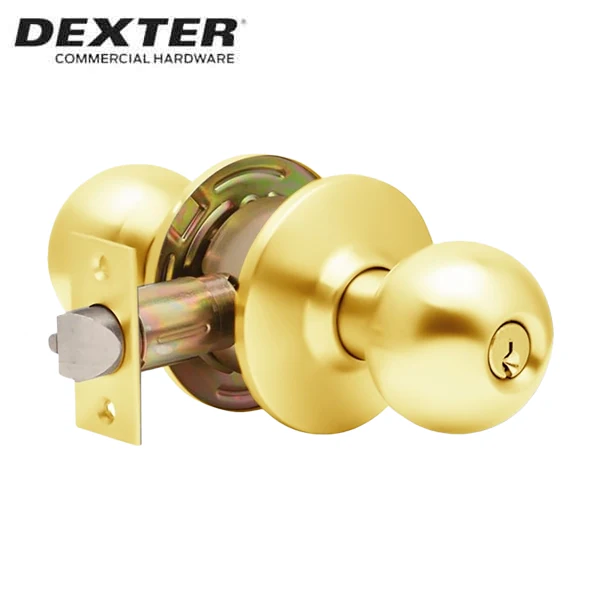

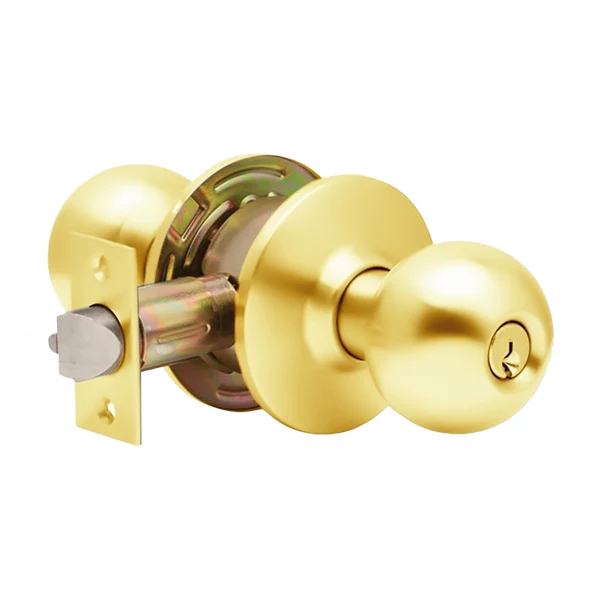

Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With hundreds of grade 1 and grade 2 products, Dexter Commercial Hardware is designed for common door applications and is your solution for cost-constrained projects.

Features:

• Complies with ADA accessibility guidelines
• Grade 2
• UL listed 3 hours fire-rated
• C Keyway
• Entry/Office Function
• ASA Strike



Specifications

Lock Function	F109 – Entry/Office
Handing	Non-Handed
Door Material	Wood or Hollow Metal
Door Thickness	1-3/8 ” to 1-3/4”
Cylinder	KDC: Conventional 6-Pin,Schlage, KD
Backset	2-3/4"
Latch Type	Dead Latch (Guarded)
Lever	Ball Knob
Lever Function	Clutching
Keying	Keyed Different
Rose/Escutcheon Size	3" Diameter
Strike	ANSI 1-1/4" x 4-7/8" Curved lip Square corner
Projection	1/2" Bolt Projection
Lock Face Size	2-1/4 In. x 1-1/8 In
Finish	626 - Satin Chrome
Material	Brass/Bronze
Certifications	ANSI Grade 2, ANSI A156.2 Series 4000, UL Listed
Includes	Universal Screw Packs: Screws Included for Wood or Hollow Metal Doors
Manufacturer Warranty	Limited lifetime mechanical warranty
